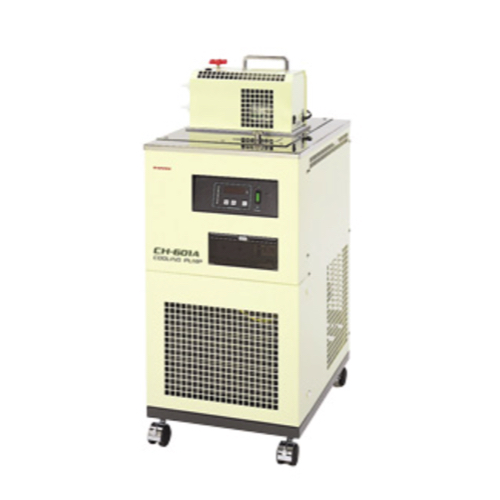

TAITEC CH-601A ປໍ້າເຮັດຄວາມເຢັນ (-10℃ ~ +25℃; ±2.0℃; 600W, R404A)

Temperature range (＊1): -10℃ to +25℃

Ambient temperature range: +5℃ to +35℃

Control accuracy (＊2): ±2.0℃, Compressor On-Off control

Compressor output, Refrigerant: 600W, R404A

Cooling capacity (at 50Hz) (＊3): approx. 1.0 kW

Temperature setting display: Digital system  (setting/display switching system) Safety device/function

Other Functions: TTemperature check monitor, Freezer pause timer

Water bath capacity (water level 80%) (＊4): approx. 26L

Applicable pump unit: P-310

Dimensions (Pump unit not included): 407×565×766 mm

Weight (Pump unit not included): approx. 69kg

Power Supply (Pump unit is not included): AC100V/20A MAX25A  (Need a step-down transformer)

Operation current (Pump unit is not included): 9A

Standard Accessory: Power code , Drain hose x 1 pc

(*1)When setting below +7℃, please be sure to use antifreeze (Please ask us for details).

(*2)Performance may not be maintained due to the heating medium, environmental temperature, heat load, circulation pipe distance, etc.

(*3)Capacity when using tap water and the circulating fluid temperature at 10℃. The capacity varies with the pump unit mounted. The capacity decreases when the ambient temperature is above +30℃.

(*4)Due to the structure not being sealed, the circulating fluid may evaporate and reduce depending on the set temperature and heating medium type.
