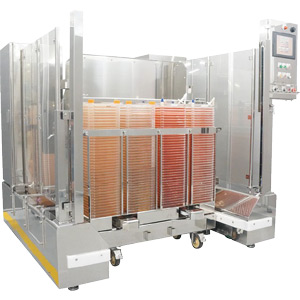

TAITEC Automatic Manipulator ເຄື່ອງມືພິເສດສຳລັບການຈັດການຕູ້ຟັກໄຂ່ຫຼາຍຊັ້ນ
Object of observation: Resin multi-layer incubator , Thermo Fisher Scientific: Cell Factory,Corning International: Cell Stack Each company's product has 1 to 40 tiers or a maximum height of 800mm
Device weight: 1,070kg (Excluding Trolley)
Allowable load (static load): 200kg (including container and upper trolley)
Turning motion: -5 (right) to 135 (left) ° (-30 to 150 ° option)
Inclined motion: -20 (front) to 30 (rear) °
Turning speed: 1 to 60 ° / sec (operating speed excluding acceleration / deceleration range)
Inclined speed: 1 to 60 ° / sec (operating speed excluding acceleration / deceleration range)
Shaking motion: Plane reciprocating motion, forward/backward, left/right, Diagonal and Rotational .
Shaking speed: Maximum 100mm / sec (at 30mm / 100rpm)
Shaking amount: Maximum 50mm
Power supply: AC200 to 230V 50/60Hz 9kVA(AC380 to 440V option)
Containers handled: 40 (52) stage multi-layer incubator x 4 (10-stage multi-layer incubator x 8, option)
Installation environment:
Temperature: 5 ℃ -30 ℃
Humidity: 50% or less (30 ℃, non condensation)
Floor: Load capacity 1t / m2, non gradient recommended
