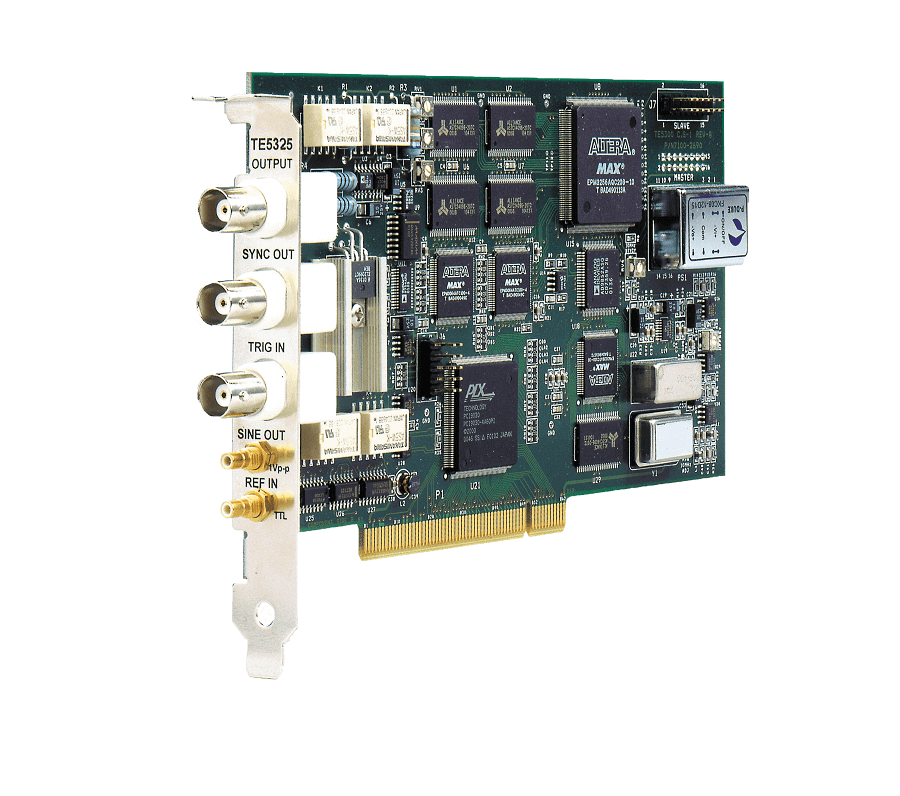

Tabor Electronics 5235 ເຄື່ອງສ້າງຮູບແບບຄື້ນຕາມໃຈມັກ PCIBus (1CH; 25MHz; 50MS/s)
Single-channel 50MS/s PCI-Based waveform generator
Sine waves to 25MHz, Square to 15MHz
SINE OUT to 50MHz, 1Vp-p
14 Bit vertical resolution
1M waveform memory
1 ppm clock accuracy and stability
Extensive modulation capabilities AM, FM, Arbitrary FM, FSK, Ramped FSK and Sweep
14 digits sample clock frequency setting, limited by 1µS/s
Waveform sequencing with up to 4096 segments and sequences
Occupies a single slot only
Ultra fast waveform downloads using DMA
ArbConnection software for easy waveform creation
For more details on all features, please refer to the datasheet
