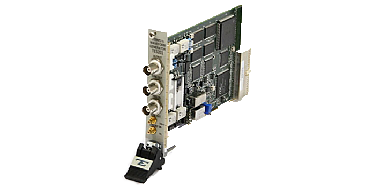

Tabor Electronics 5201 ເຄື່ອງສ້າງຮູບແບບຄື້ນຕາມໃຈມັກ PXIBus (1CH; 50MHz; 125MS/s)
Single-channel 125 MS/s PXI-Based waveform generator
Sine waves to 50MHz, Square to 30MHz
8Vp-p into 50Ω standard, double into high impedance
SINE OUT to 125MHz, 1Vp-p
14 Bit vertical resolution
2M waveform memory
1 ppm clock accuracy and stability
Extensive modulation capabilities AM, FM, Arbitrary FM, FSK, Ramped FSK and Sweep
14 digits sample clock frequency setting, limited by 1µS/s
Waveform sequencing with up to 4096 segments and sequences
Occupies a single slot only
Ultra fast waveform downloads using DMA
ArbConnection software for easy waveform creation
Similar Products
For more details on all features, please refer to the datasheet
