Dimensions: 227×190×83.3 (mm)
Radar Velocity Sensor
Radar Power: 100mW
Radar Frequency: 24GHz
Maximum Measuring Range: 40m (related to flow state)
Velocity Measurement Range: 0.03~20m/s
Velocity Measurement Accuracy: ±0.01m/s; ±2%FS
Antenna Angle: 12°
Radar Water Level Meter
Radar Power: 100mW
Radar Frequency: 80GHz
Measurement Range: 40m
Measurement Accuracy: ±3mm, ±0.05%FS
Antenna Angle: 8°
Other Specifications
Data Transmission Method: RS485 (default) / RS232 (optional) / SDI12 (optional) / MODBUS protocol
Analog Output: 4-20mA (optional)
Operating Temperature: -35°C to 70°C
Storage Temperature: -40°C to 70°C
Lightning Protection Level: 6KV
Protection Grade: IP68
(Built-in RTU)
Operating Current (@DC12V): Working mode: ≤120mA; Data upload: ≤60mA; Sleep mode: ≤1mA
Wireless Transmission: 4G (default) / NB-IOT / LORA
Product Introduction

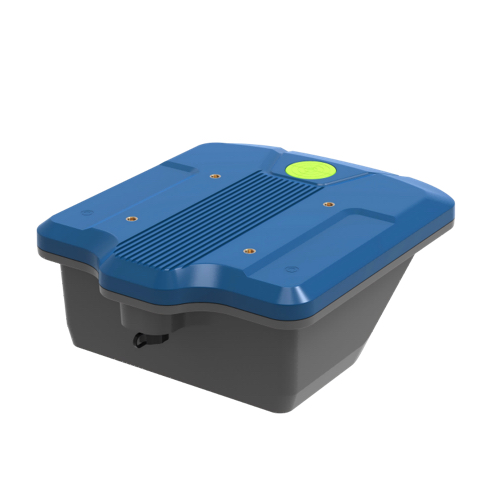

The RD-600 radar flow meter is a non-contact, integrated flow monitoring device independently developed and designed by Shenzhen Huaju Scientific Instruments Co., Ltd. It enables real-time, non-contact measurement of water level, velocity, and flow rate in rivers, open channels, reservoirs, sewage networks, and flood control early warning systems. Based on built-in software algorithms, it calculates and outputs instantaneous cross-sectional flow rate and cumulative flow rate, while also outputting flow velocity and water level. It easily connects to database platforms and allows viewing of measurement information on cloud platforms. Supporting digital (RS485, RS232) or analog (4-20mA) transmission interfaces, it features low power consumption, compact size, high reliability, simple operation, and convenient maintenance. The measurement process is unaffected by environmental factors such as temperature, air pressure, sediment, dust, river pollutants, floating debris, and air pollution.
This series of flow meters can also be equipped with a built-in RTU function, which allows field data to be directly uploaded to the cloud platform via a built-in wireless communication unit, and enables remote debugging and equipment program upgrades. It features high integration, small size, easy installation, and low maintenance.
