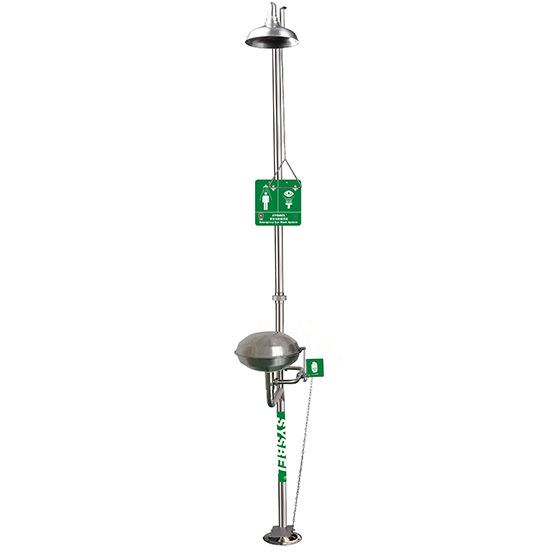

Sysbel WG7053C SYSBEL Combination Safety Shower and Linkage Flip-Top Eyewash Station

Shower Head: 304 Stainless Steel

Bowl / Cover: 304 Stainless Steel

Product Name: Combination Safety Shower and Linkage Flip-Top Eyewash Station

Main Material: 304 Stainless Steel

Inlet / Outlet: 1" / 1"

Flow Rate (L/min): Eyewash: 11.4Shower: 75.7

Package Size (L×W×H, cm): 123 × 40 × 30

Standards / Certifications: ANSI Z358.1, AS 4775, CSA, CE, GB/T 38144.1, GB/T 38144.2

Recommended Water Pressure (kPa): ≥ 210

ANSI Z358.1-2014 – Emergency Eyewash and Shower Equipment

GB/T 38144.1-2019 – Technical Requirements for Emergency Eyewash and Shower Equipment

GB/T 38144.2-2019 – Usage Guide for Emergency Eyewash and Shower Equipment

Constructed entirely from 304 stainless steel , including the shower head, eyewash bowl, and flip-top cover.

Simultaneous flushing for the body, eyes, and face , offering full emergency protection. Floor drain recommended.

Triple activation options : hand push plate, foot pedal, and stainless-steel triangular pull rod.

Operating pressure : ≥ 210 kPa (30 psi / 2 bar / 2.1 kgf/cm²).

Comes with an adjustable eyewash bracket (0–8 cm adjustment range).

Flow rate : Eyewash 11.4 L/min, Shower 75.7 L/min.

Equipped with flip-top protective cover to prevent contamination.

Corrosion-resistant , acid/alkali-resistant , and flow-balanced design.
