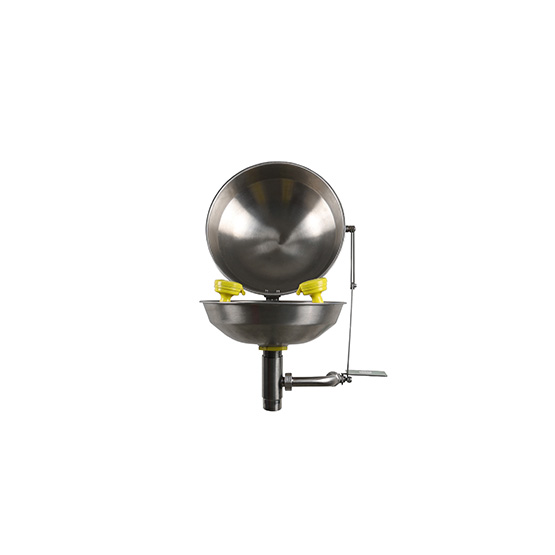

Sysbel WG7023C SYSBEL Wall-Mounted Linkage Flip-Top Eyewash Station, Model WG7023C

Inlet: 1/2″

Outlet: 1-1/4″

Eyewash: 11.4

Shower Head: 304 Stainless Steel

Bowl / Cover: 304 Stainless Steel

Product Name: Combination Safety Shower and Linkage Flip-Top Eyewash Station

Main Material: 304 Stainless Steel

Package Size (L×W×H, cm): 58 × 36 × 23.5

Standards / Certifications: ANSI Z358.1, AS 4775, CSA, CE, GB/T 38144.1, GB/T 38144.2

Recommended Water Pressure (kPa): 210KPa30psi2bar

The SYSBEL WG7023C Wall-mounted Linked Flip-top Eyewash Station is designed to provide rapid and effective eye and face rinsing in emergencies. Built with a 304 stainless steel basin and cover, it offers superior corrosion resistance against acids and alkalis, making it ideal for harsh industrial environments. The fully enclosed dust-proof design ensures long-term durability, while the linkage between the basin cover and push handle allows instant activation for immediate flushing. Exceeding the ANSI Z358.1-2014 standard flow rate of 11.4 L/min (3.0 GPM), this eyewash station guarantees balanced water outlet height and optimal washing efficiency. Compliant with ANSI Z358.1-2014, AS 4775-2007, and GB/T 38144 standards, it is a reliable safety solution for workplaces handling hazardous chemicals.
