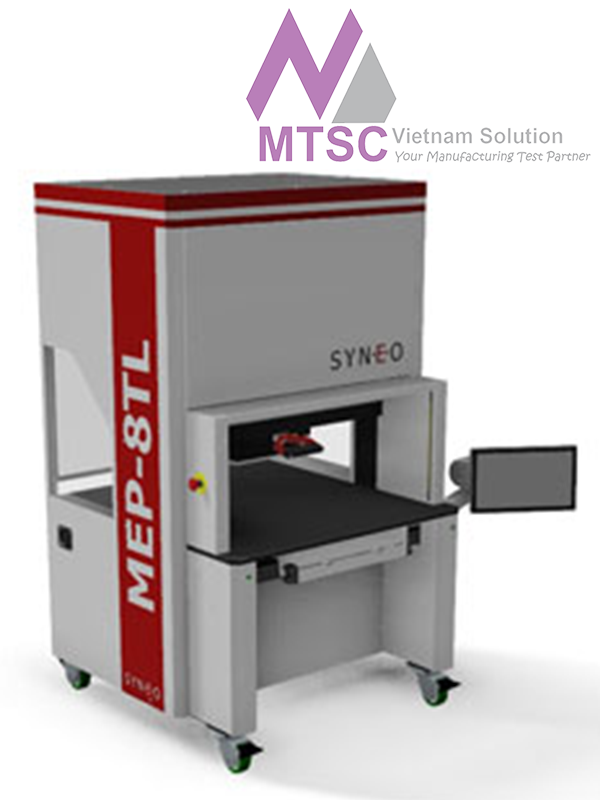

SYNEO MEP-8TL Manual Electric Press
Hãng sản xuất: SYNEO
Model: MEP-8TL
Bảo hành: 12 tháng
Opening 91 CM x 91 CM deep (30" x 36")
PCB 64 CM x 91 CM (24" x 36")
Servo Electric 'H'-frame design
8-ton capacity
Windows PC control with touchscreen monitor, keyboard, mouse
Full force available throughout travel
Head is manually moveable throughout opening
Flat rock press head 254 MM x 38 MM (10" x 1.5")
Teflon Hard Coat aluminum table
Two-hand safety actuation
Press to force or height with error detection
Dynamic force adjustment using PAST, PAR or FAT
Fully automatic setup, no manual adjustments
Board thickness measurement220 VAC 1 phase, 20 Amps, 50 /60 Hz
Air 80 psi for air table & sliding head air bearing
1,500 lbs. approx. weight
Shipping: 1 pallet, 190 CM x 170 CM x 196 CM high, 1900
Press Force: 8 Tons
Two Stage Force(2SF): YES
True Distance Measurement (TDM): YES
Board Size: 680mm x 910mm
Press Anvil Size: 279mm x 38mm
