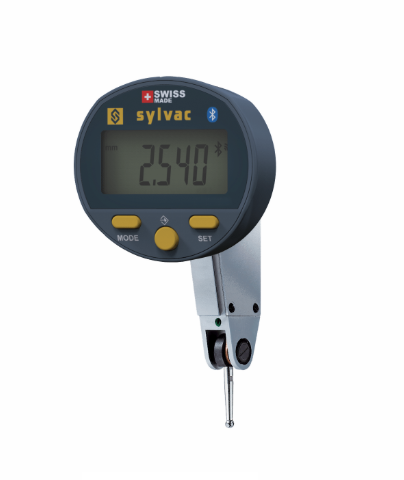

Sylvac 805-4321 ອຸປະກອນທົດສອບດິຈິຕອນ (0.8mm, 0.001 mm)

Measurement capacity (mm): 0.8

Stylus length L (mm): 12.5

Accuracy fe (α=0°) (µm): 3

Total accuracy fges (α=0°) (µm): 4

Reversibility fu (µm): 2

Resolution: 0.001 mm / .00005 IN

Repeatability fw (µm): 1

Measuring force (N): 0.15

Friction on probe orientation (N): 4

Weight (g): 70

Protection rating according to IEC 60529: IP54

Connection type (instrument to device):"

Bluetooth® Wireless Technology ¹

Power to RS232 ¹

Power to USB ¹

Adaptator RS – USB ¹

View cables info

Zero setting: ⬤

min / max / delta display: ⬤

Analog display: ⬤

Selection of resolution: ⬤

Preset (0.01 resolution): ±99.999 mm / ±3.99995 IN (±999.99 mm / ±39.9995 IN)
