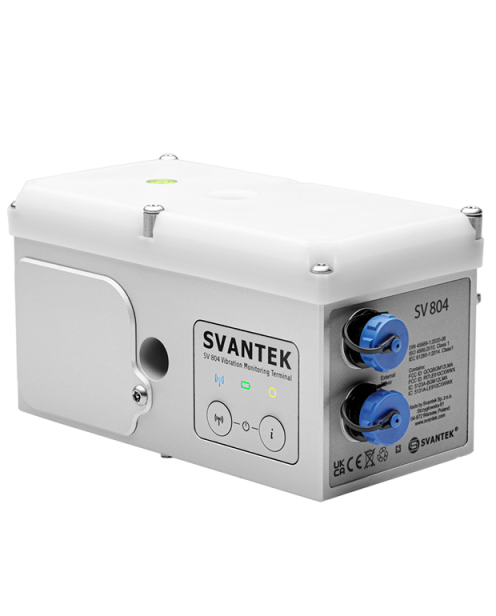

Svantek SV 804 ເຄື່ອງຕິດຕາມການສັ່ນສະເທືອນແບບໄຮ້ສາຍ Triaxial (Class 1; 0,8–500 Hz; 1 µm/s–565 mm/s;)
Standards: DIN 45669-1:2020-06; DIN 4150-3:2017-12; BS 7385-2:1993; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1
Meter Mode: PPV (Vmax); DF; RMS; RRMS; KBf; KBfmax; VDV; MAX; Peak; Peak-Peak; PPV Vector; aw; awv; OVL
Analyser: 1/3 octave real-time analysis or FFT analysis; time-domain signal recording to WAV format
Filters: DIN 80; DIN 315; VEL1; KB; HP
RMS Detector: Digital true RMS with Peak detection; resolution 0.01 dB
Detector Time Constants: Fast 125 ms in accordance with DIN 4150-2
Vibration Sensor: Tri-axial geophone
Dynamic Range:
1 µm/s ÷ 100 mm/s RMS (141 mm/s Peak)
4 µm/s ÷ 400 mm/s RMS (565 mm/s Peak)
Measurement Range:
3 µm/s ÷ 100 mm/s RMS (141 mm/s Peak)
12 µm/s ÷ 400 mm/s RMS (565 mm/s Peak)
Frequency Range: 0,8 Hz ÷ 500 Hz (-3 dB)
Remote Communication: Cellular modem; Bluetooth®; GPS
Memory: 32 GB
Ingress Protection Rating: IP67
Power Supply:
Internal battery / SB 804 Li-Ion battery pack; 7.2 V; 10.2 Ah; 73,4 Wh (easy-removable)
USB interface / SC 816 cable and SB 83 charger
DC power supply / SB 274L waterproof charger (optional)
External battery pack / Li-Ion (optional)
Solar panel (optional)
Operating Time on Battery:
Up to 10 days with continuous modem transmission
Up to 60 days in power saving mode
Unlimited with SB 804 and solar panel in power saving mode
Environmental Conditions – Temperature: −20 °C ÷ +50 °C (−4 °F ÷ +122 °F)
Environmental Conditions – Humidity: 0 – 100 % RH
Dimensions: 171 × 85 × 83 mm (without accessories); 6.73 × 3.35 × 3.27 in (without accessories)
Weight: 1,7 kg (3.75 lb) including battery
