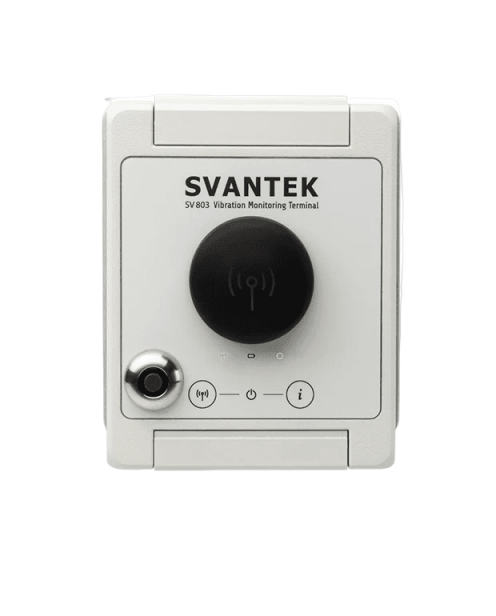

Svantek SV 803 ເຄື່ອງຕິດຕາມການສັ່ນສະເທືອນແບບໄຮ້ສາຍ (Class 1; 0.8–500 Hz; 1 um/s–141 mm/s)
Standards: DIN 45669-1:2020-06; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1
Meter Mode: PPV; DF; RMS; RRMS; VDV; MAX; Peak; Peak-Peak; PPV Vector; aw; awv; OVL
Analyser: 1/3 octave real-time analysis or FFT analysis; time-domain signal recording to WAV format
Filters: DIN 80; DIN 315; VEL1; KB; HP
RMS Detector: Digital true RMS with Peak detection; resolution 0.01 dB
Detector Time Constants: Fast 125 ms in accordance with DIN 4150-2
Vibration Sensor: Tri-axial geophone
Dynamic Range: 1 um/s RMS ÷ 141 mm/s Peak
Measurement Range: 3 um/s RMS ÷ 100 mm/s RMS (141 mm/s Peak)
Frequency Range: 0.8 Hz ÷ 500 Hz (-3 dB)
Remote Communication: 4G modem; Bluetooth; GPS
Power Supply:
Internal battery / SB 803 Li-Ion battery pack; 7.2 V; 30.15 Ah; 217 Wh (removable)
DC power supply / SB 274 charger (waterproof)
External battery pack: Li-Ion (optional)
Solar panel (optional)
Operating Time on Battery:
Up to 30 days with continuous modem transmission
Up to 180 days in power saving mode
Unlimited with SB 803 and solar panel in power saving mode
Environmental Conditions – Temperature: −20 °C ÷ +50 °C
Dimensions: 163 × 128 × 115 mm (without accessories)
Weight: Approximately 3.0 kg (including battery); approximately 3.5 kg (including battery and mounting platform)
