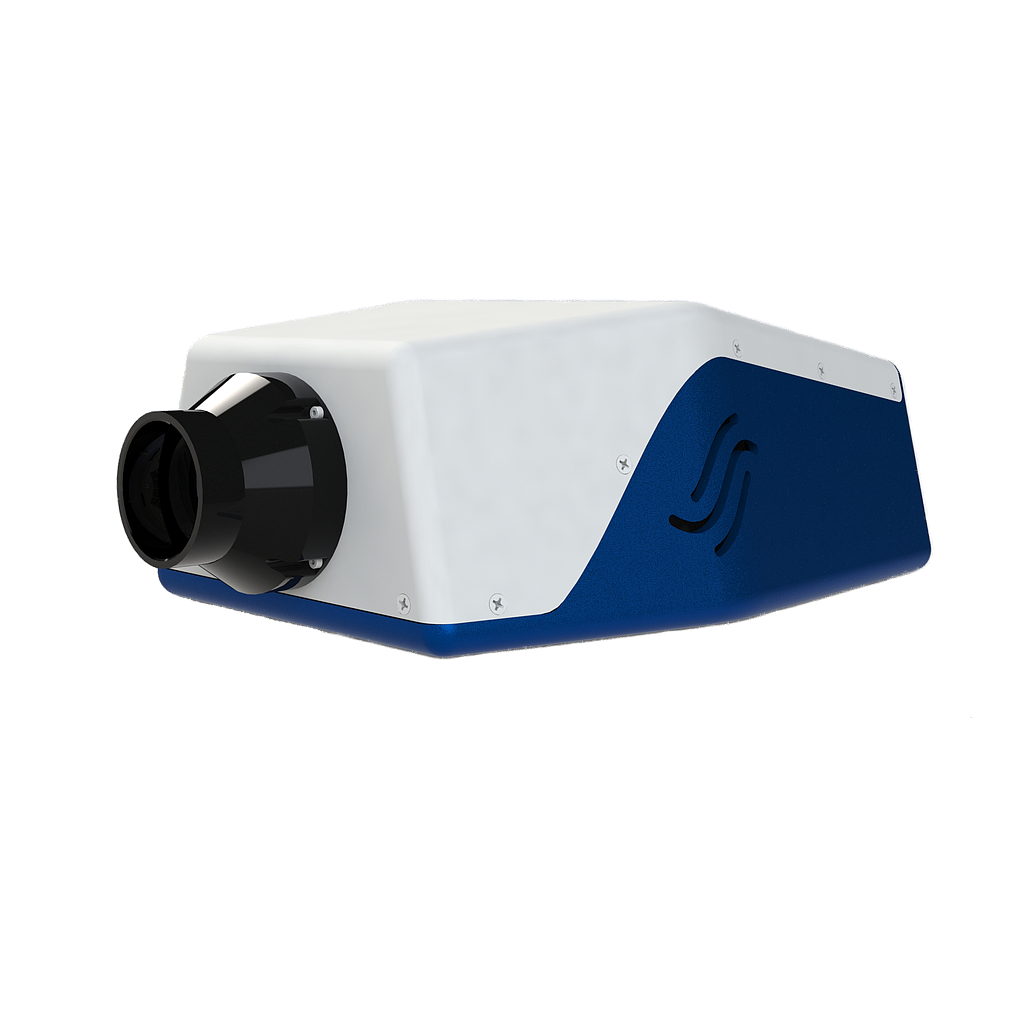

Surface Optics VNIR ການຖ່າຍພາບແບບ Multimodal Snapshot (400 - 1000, 11.43 cm x 13.97 cm x 25.4 cm (4.5 in. x 5.5 in. x 10 in.))

Performance

Spectral Range: 400 - 1000

Spectral Resolution: 25 (average)

Spectral Bands: 16

Spatial Resolution: 512 x 512

Data Cube Collection Rate (fps): 30

Pixel Pitch (μm): 7.4 (Spectral); 29.6 (Spatial)

Lens

Aperture (F/#): 2.7

Lens Focal Length: 66 mm

Environmental

Weight: 3.17kg (7 lbs)

Dimensions: 11.43 cm x 13.97 cm x 25.4 cm (4.5 in. x 5.5 in. x 10 in.)

Power: 12 VDC; < 12W

System Interface: USB

Features

Multimodal Imaging

Simultaneously capture spectral, light field and polarization information for every pixel.

Snapshot Acquisition and Processing

Acquires datacubes in a single integration, making it ideal for dynamic scene applications. Captures AND processes the spectral dataset in real-time.

Customized for Your Application

Choose 16 bandpass filters or polarizers specific to your application's region of interest.
