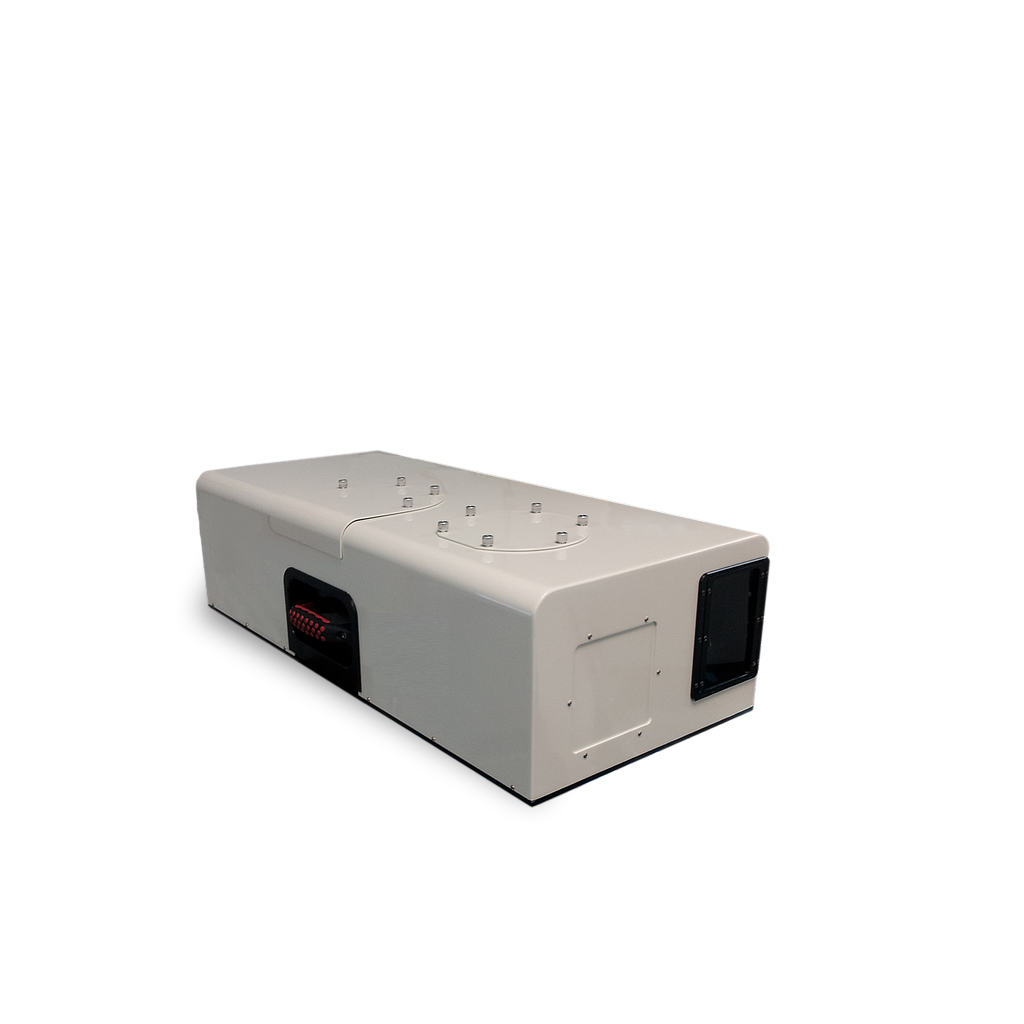

Surface Optics SOC760 ລະບົບຮູບພາບ Hyperspectral (0.4 microns to 2.5 microns)

Portable dual-band, single field-of-view system

Coverage from 0.4 microns to 2.5 microns

Captures 650 bands registered images into a single data cube

Each spectral image is 640 pixels along the slit of the spectrometers and 2048 pixels along the scan direction

Each channel has its own fore optic and transmission grating spectrometer.

The SWIR channel has a cooled InSb focal plane array (SBF178)

Delivered with mobile workstation laptop utilizing high-end mobile processor, high-end graphics adapter and 2 TB storage.
