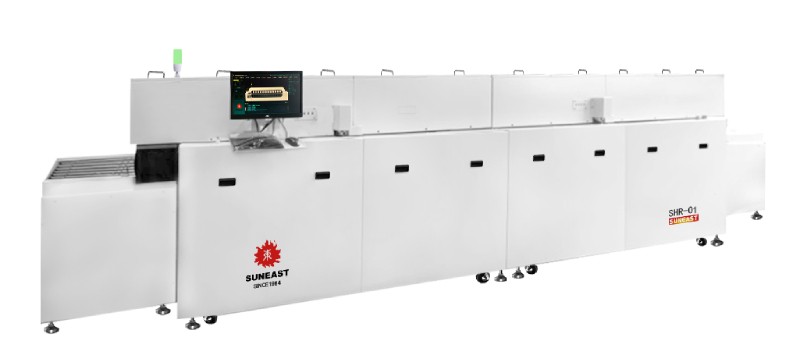

Dimension:L6566xW1420xH1685mm
Weight:Approx.1400kg
Power Supply:3P5L 380V 50/60Hz
Control system:PC+PLC
Total Power:Approx.45KW
Conveying Type:Stainless steel customized supporting chain
Channels:6 Channels
Product height (including fixture):L162*W68-82*H160mm
Infeed height:900±20mm
Conveying Speed:30-150mm/min
Speed control mode: Closed Ioop stepless speed regulation by inverter
Conveying direction:L-R(Option：R-L)
Temperature control mode:PID
Temperature range:Room temp~200℃
Heating system:Heating on the channel
Heating zones:8 heating zones
Heating zone length:4800mm
Cooling zone length:N/A(Option)
Warming up time:Approx.15min(Set temp 150℃)
Running power:Approx.6KW
Temperature value display accuracy:1℃
Abnormal alarm:Three-color signal light+human-machine interface alarm
Exhaust requirement:2-Φ150 air outlet，the exhaust air volume of a single air outlet is about 15m³/min
Parameter storage:Process Data and status stotage
Power cut protection:Equipped with UPS
Air source:N/A
