- Heating system:
Number Of Heating Zones: 8 heating zones, 16 heating modules
Length of heating zone: 2950mm
Heating up time: 20min
The diameter of the inlet and outlet exhaust pipe: 2-Φ145, Exhaust demand 10m³/min x2.
- Cooling system:
Cooling type: Three cooling zones: forced water cooling
Cooling zone length: 1250mm
Chiller power: 5P Water chiller (Optional: connected to customer workshop cooling water)
- Conveyor system
Conveyor Type: Fine mesh mesh belt (Optional: B-shaped mesh belt, force bone mesh belt)
Conveyer Direction: L→R,R→L
Converyer Height: 900±20mm
Mesh belt width: 24"" (Other width sizes can be customized.)
Cmponent Height: 20mm
Conveyor Speed: 300mm-2000mm/min
- Control system:
Power Supply: AC3Φ，5W,380V,50/60HZ
Total power: 70KW
Startup power: 35KW
Normal operating power: 10KW
Operating temperature range: Room temperature to 320℃
Control mode: PC+PLC control system
Width adjustment mode of track: Electric+manual
Temperature control accuracy: ±1℃
PCB temperature deviation: ±1.5℃
Setting parameter storage: Pr℃ess Data and status stotage
Power failure protection: Equipped with UPS
N2 area: Full nitrogen filling
Secs/Gemcommunication protocol: Standard
MES communication protocol: Standard
Operating interface: Windows Chinese simplified, English online free switching
Computer: Commercial computer
- Pecifications Parameters
Dimension(L*W*H): 5680x1710x1650mm
Weight: 2400-2600kg
Flux recovery system: Standard
Color Bright wrinkled white

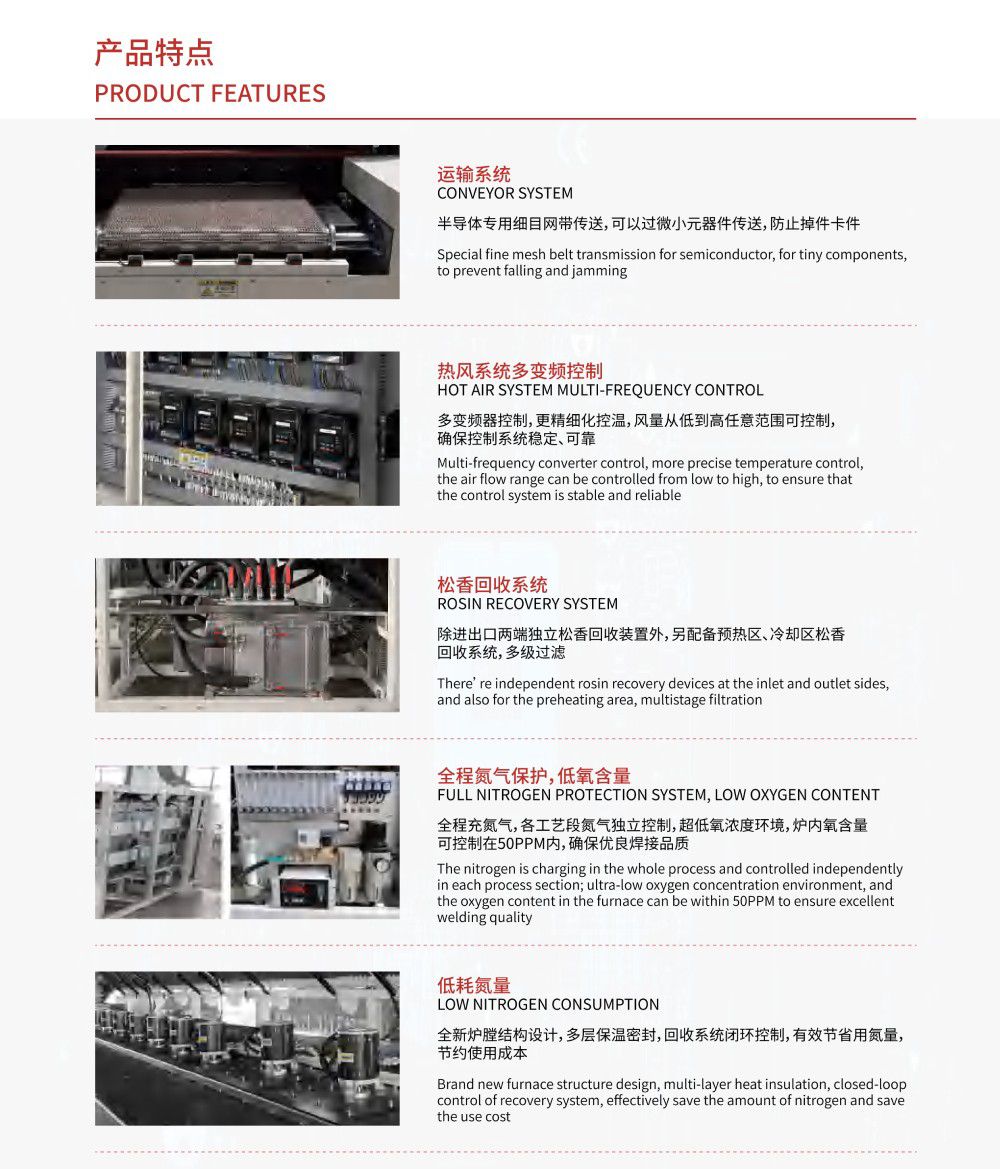

Features
