Frequency
Range
Sine: 1μHz ~ 160MHz
Square, Pulse: 1μHz ~ 50MHz
Arbitrary: 1μHz ~ 30MHz
Ramp: 1μHz ~ 5MHz
Resolution: 1μHz
Accuracy: ±(2ppm+1μHz)
Waveform
Type: 150 kinds, including sine, square, ramp, pulse, noise, PRBS, Exponential, Logarithm, Tangent, Gaussian, Cardiac, Quake, etc.
Length: 16384 points
Sample Rate: 500MSa/s
Amplitude
Range
Frequency ≤40MHz: 1mVpp ~ 10Vpp(50Ω load)
Frequency ≤80MHz: 1mVpp ~ 5Vpp(50Ω load)
Frequency ≤120MHz: 1mVpp ~ 2.5Vpp(50Ω load)
Frequency >120MHz: 1mVpp ~ 2Vpp(50Ω load)
Accuracy: ±(setting value×1%＋2mVpp)
Flatness(relative to 1MHz Sine)
±0.2dBm,frequency＜80MHz
±0.3dBm,frequency≥80MHz
Offset
Range: ±10Vpk (ac+dc, open circuit) ±5Vpk(50Ω load)
Accuracy: ±(setting value×1%＋2mV＋0.5% of amplitude)
Modulation
FM, AM, PM, PWM, SUM Modulation
Modulation Frequency: 1mHz ~ 100kHz (FM, AM, PM, PWM), 1mHz~1MHz (Sum)
AM Modulating Depth: 0% ~ 120%
Phase Deviation: 0° ~ 360°
Pulse Width Deviation; 0% ~ 99%
Sum Amplitude: 0% ~ 100%
Source: internal, external
FSK, 4FSK, QFSK,PSK, 4PSK, QPSK, ASK, OSK
Hope Frequency: 1μHz ~ maximum frequency
Hope Rate: 1mHz ~ 1MHz
Trigger Source: internal, external
Sweep
Waveform: Sine, Square, Ramp, etc.
Type: Linear, Log, List
Sweep Time: 1ms to 500s
Return/Hold/Interval Time: 0s to 500s
Trigger source: Internal, External or Manual
Burst
Waveform: sine, square, Ramp, etc.
Period: 1μs~500s
Burst Count: 1 ~ 100000000
Start/Stop Phase: 0° ~ 360°
Trigger Source: internal, external, manual
Channel Coupling
Frequency Coupling: Frequency Ratio, Frequency Difference
Amplitude Offset Coupling: Amplitude Difference, Offset Difference
Waveform Coupling: Comination Amplitude, 0% ~ 100%
SYNC Output
Level: compatible with TTL, rise/fall time≤10nS
Impedance: 50Ω (typical)
Counter
Frequency range: 0.01Hz ~ 350MHz Resolution: 7 digits/s
Period, Pulse Width Measurement: 100ns ~ 20s
Duty Cycle Measurement: 0.1% ~ 99.9%
General Characteristics
Power: AC 100 ~ 240V, 45 ~ 65Hz, ＜30VA
Dimension & Weight: 367×256×106 mm, 3.7 kg
Standard Accessories
Power Cord:1pcs
BNC Testing cable:1pcs
CD(software+user's Guide):1pcs

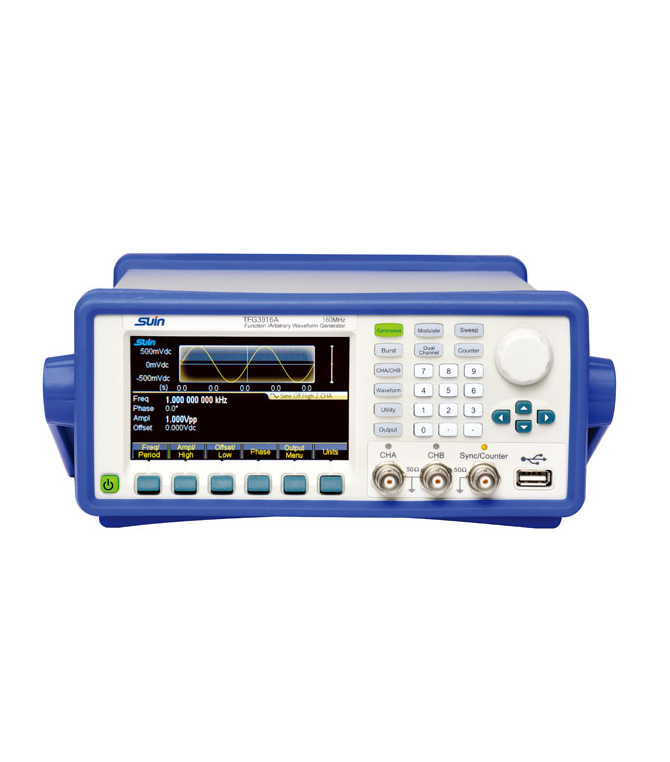

Adopting DDS technique, FPGA and SOPC system, TFG3900A Series arbitrary waveform generator has excellent functions, such as it can make max 150 kinds waveform to meet your laboratory requirement, 500MSa/s sample rate and high accuracy make the test fast and easily. Compared with other signal generators, it has higher performance.
