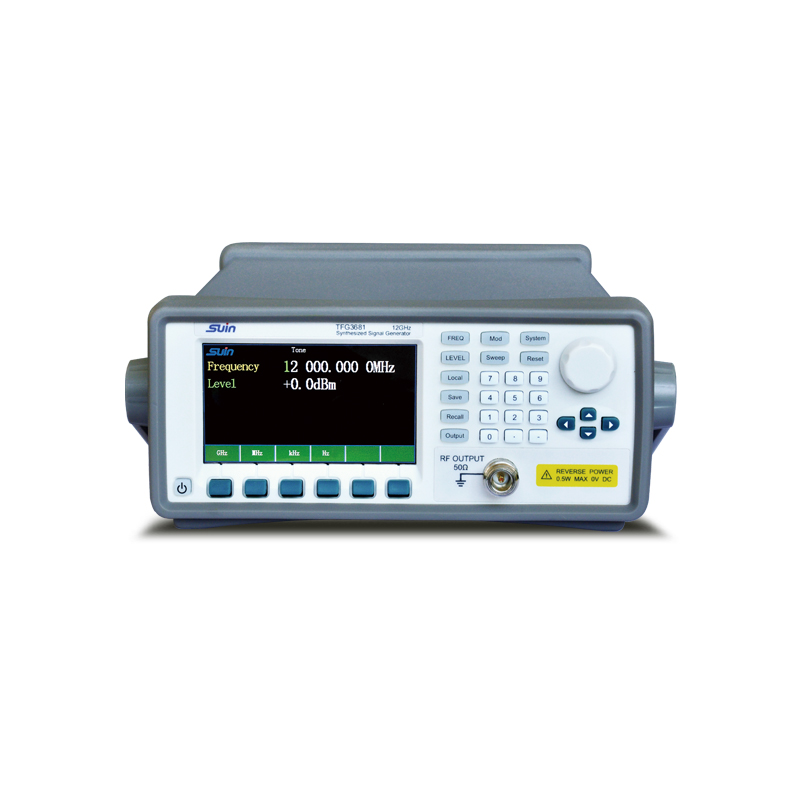

SUIN TFG3681 ເຄື່ອງກໍາເນີດສັນຍານໄມໂຄເວຟ (10MHz~12GHz)

Frequency Range: 10MHz~12GHz

Resolution: 20Hz, 1mHz(option)

Accuracy: ±1ppm, Frequency≥1.0kHz,18ºC-28ºC

Microwave Signal Generator Amplitude

Setting Range: -25dBm~+15dBm

Specified Range: -10dBm~+13dBm

Resolution: 0.1dB

Accuracy: ±1.5dBm of setting (output level: +13dBm ~ -10dBm)

Output Impedance: 50Ω

Microwave Signal Generator Spectrum Purity

Harmonic: <-35dBc

Non-harmonic: <-70dBc

Phase Noise: -94dBc/Hz@10kHz,at 10GHz output

Microwave Signal Generator Modulation

PM break-make ratio: 60dBc

Make-break time range: 100nS-10mS

General Characteristics

Power: AC200V~240V, 50(1±10%)Hz,<40VA

Dimension&Weight: 254*103*374mm, 4.2kg

Standard Accessories

Power Cord: 1pcs

CD(Software+User's Guide): 1pcs

A microwave signal generator is a device that produces a continuous or pulsed microwave frequency signal. It is used in various applications such as testing and troubleshooting microwave communication systems, radars, and other electronic equipment.

Feature
Ultra-low phase noise, excellent spurious, noise suppression, ultra-wide bandwidth

wide application range in radar, communication, ECM, electronic reconnaissance and etc.

It can also be used as local oscillator and signal generator
