Channel: 2
Frequency
Sine: 1μHz~400MHz
Square: 1μHz~120MHz
Pulse: 1μHz~80MHz
Ramp: 1μHz~6MHz
Others: 1μHz~50MHz
Resolution: 1μHz
Accuracy: ±1ppm
Waveform
Type: 165 kinds include: Sine, Square, Ramp, Pulse, Noise,DC, PRBS, bulit-in arbitrary waveforms and user-defined harmonic, etc.
Sample Rate: 1.2GSa/s
Vertical Resolution: 14 bits
Arbitrary
Sample Rate: 1uSa/s~200MSa/s
Length: 2 ~ 32M points
Resolution: 14 bits
Square
Rise/Fall Time: ≤2.5ns
Duty Cycle: 0.01％~99.99％
Pulse
Rise/Fall Time: 2.5ns ~1.2s
Width: 4ns~(1000000s ~4ns)
Sine Spectral Purity
Total Distortion: ≤0.2% (20Hz~20kHz, 20Vpp)
Phase Noise: <-140dBc @ 10MHz (0dBm, 10kHz offset)
Amplitude
Range (50Ω load)
f≤40MHz : 1mVpp~10Vpp
f≤100MHz: 1mVpp~5Vpp
f≤200MHz: 1mVpp~2Vpp
f≤300MHz: 1mVpp~1.5Vpp
f>300MHz: 1mVpp~1Vpp
Accuracy: ±(1％of setting＋1mVpp), (Sine 1kHz，0V offset，≥10mVpp)
Offset
Range: ±5Vpk ac+dc (50Ω load)
Accuracy: ±(1%of setting+2mV+0.5% of amplitude)(High-Z)
Modulation
Type: FM, AM, PM, PWM, Sum, FSK, 4FSK, NFSK, PSK, 4PSK, NPSK,ASK, OSK
Burst
Burst Count: 1 to 100000000
General Characteristic
Power: AC 100~240V, 45~65Hz , <80VA
Dimension & Weight: 363*154*467 mm, 10.0KGs
Standard Accessories
Power cord: 1pcs
BNC cable: 1pcs
CD(Software+User's Guide): 1pcs
Wifi Antenna: 1pcs

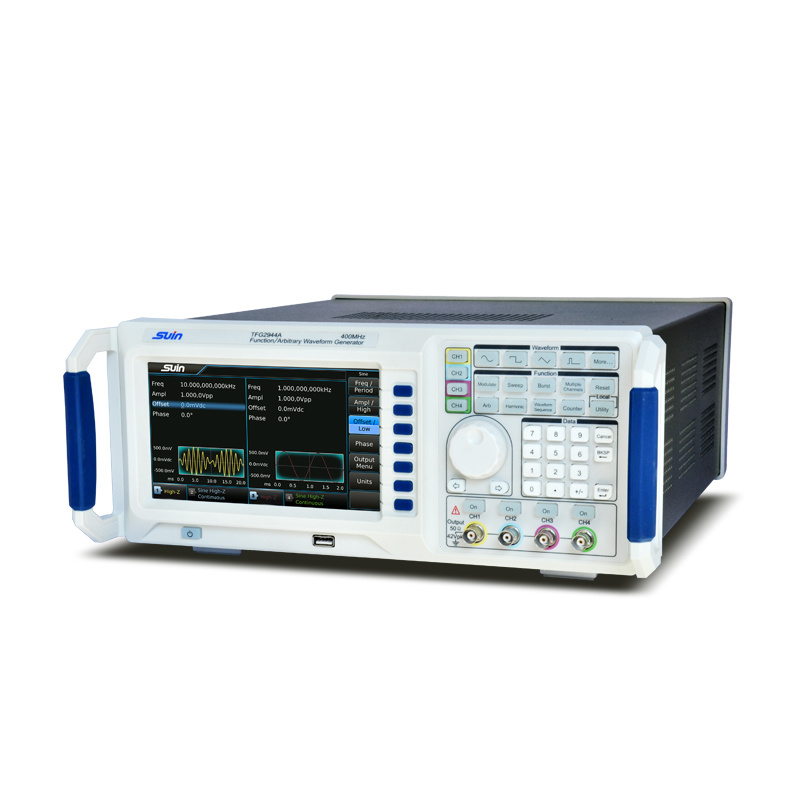

An arbitrary waveform generator is a sophisticated tool that allows you to create customized waveforms with precise control over every aspect. It's the go-to solution for those seeking flexibility, accuracy, and repeatability in waveform generation. Step into a world where your imagination becomes a reality!
With its advanced technology and precision-engineered design, it delivers unparalleled performance. Seamlessly switch between pre-defined waveforms or unleash your imagination with arbitrary waveforms tailored to your specific requirements. The possibilities are endless!
