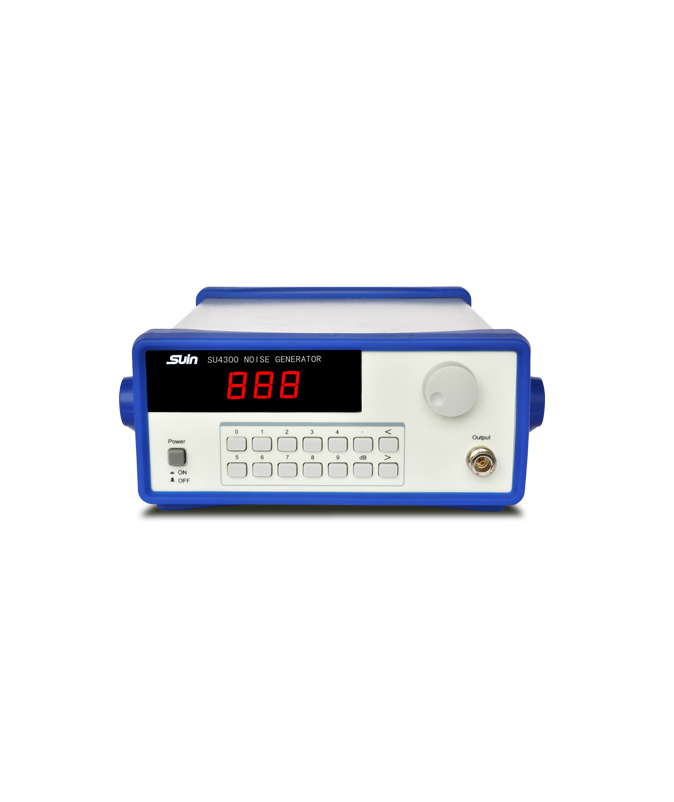

SUIN SU4326 ແຫຼ່ງສຽງ (10MHz ~ 6.0GHz)

Output

Noise Bandwidth: 10MHz ~63.0GHz

Attenuation Range: 0.0~60.0dB

Attenuation Step: 0.1 dB

Max. Output Noise: ≥3.0 dBm(10MHz ~ 6GHz)

Flatness (attenuation 0.0dB)

±2.0 dB(10MHz ~ 50MHz)

±2.0 dB(50MHz ~ 2GHz)

±2.0 dB(2GHz ~ 5.4GHz)

±2.5 dB(5.4GHz ~ 6.0GHz)

Output Impedance: 50Ω

General Characteristics

Interface: RS-232, USB(standard), GPIB(optional)

Power: AC 100V-240V, 50Hz~60Hz (1±10%),<15VA

Environment: Temperature 5℃ ~ 40℃, RH<80%

Dimension: 254×103×374mm

Weight: 4.2 kg

Standard Accessories

Power Cord: 1pcs

CD(Software+ User's Guide): 1pcs

Features

Gauss white noise with broadband standard could be generated

Uniform and controlled spetral density, no DC and excess noise

Simulate link noise in the UAV, navigation and satellite communication

Widely application in electronic countermeasures and electromagnetic compaction, BER test and CATV test
