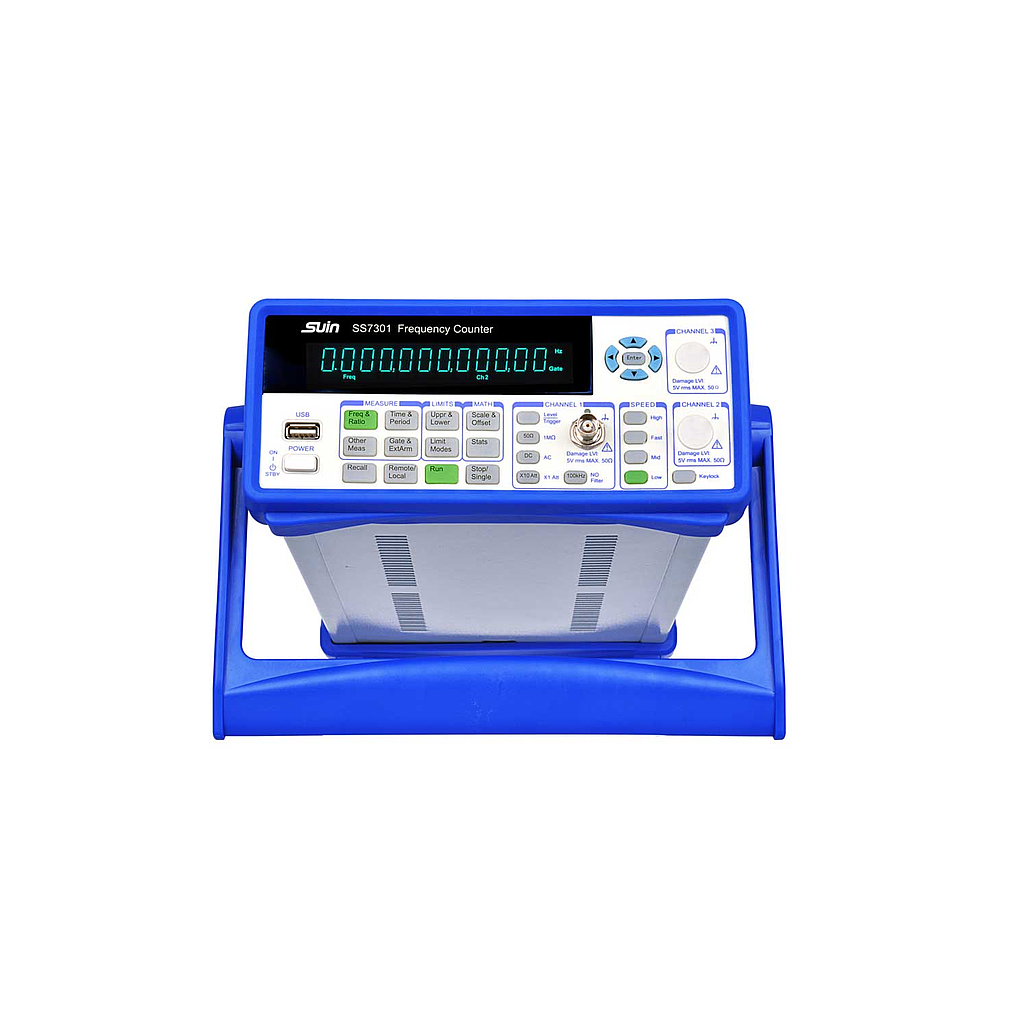

SUIN SS7301 ເຄື່ອງນັບຄວາມຖີ່ (3CH, 40GHz, 10 digits)
Measuring Function
Frequency Range
Channel 1: 0.001Hz ~ 200MHz
CH2: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz
CH 3: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz
Measurement Resolution: 10 digits/s
Period: 5ns-1000s
Pulse Width: 50ns-1000s
Duty Cycle: 5% ~ 95%
Totalize: 0~1×10^13
Input
Dynamic Range: 50mVrms~1.0Vrms (Sine), 150mVpp~4.5Vpp (Pulse)
Input Impedance: 1MΩ//35pF or 50Ω
Coupling Mode: AC or DC
Input Attenuation: ×1 or ×10
Trigger Level: -5.000V~+5.000V, step 5mV
Other Functions
Frequency Ratio: √
Frequency Self-tes: √
Up/Low Limit: 'Limit' light on shows the result out of range, off shows within range
Statistics Calculation: Multi-average, Max, Min, PPM, SD, Allan Variance
Standard Time Base
Accuracy: 5×10^-8
Daily Aging: 1×10^-8/day
Optional Time Base
Accuracy: 5×10^-8
Daily Aging: 5×10^-10/day
General Characteristics
Interface: RS-232, USB
Power: AC 220V(10%) or AC110V(10%), 50Hz(5%) OR 60Hz(5%)
Dimension & Weight: 375x105x235mm, 3.5Kg
Standard Accessories
Power Cord: 1pcs
BNC Testing cable: 1pcs
CD(Software+ User's Guide): 1pcs
