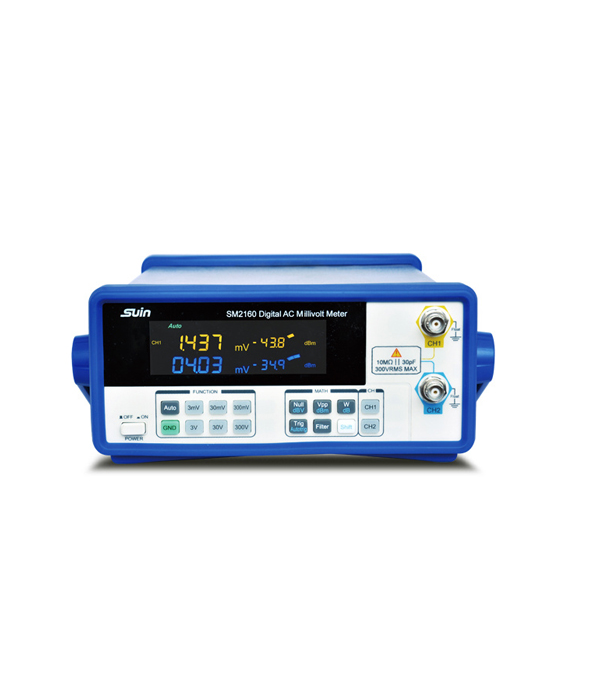

SUIN SM2160 ດິຈິຕອລ AC Millivoltmeter (AC 50µV ~ 300V, 5Hz ~ 6MHz)

Frequency Range: 5Hz ~ 6MHz

Measurement Range

AC Voltage: 50µV ~ 300V

Scale: 3mV, 30mV, 300mV, 3V, 30V, 300V

dBV: -86dBV ~ 52dBV

dBm

-73dbm ~ 65.55dbm (R=50Ω)

-84dbm ~ 51.76dbm (R=600Ω)

Vpp: 141µV ~ 848.4Vpp

dB: -86dB~49.54dB

Voltage Measurement Error

≥5Hz ~ 100Hz ±2.5% reading ± 0.8% range

>100Hz ~ 500kHz ±1.5% reading ± 0.5% range

>500kHz ~ 2MHz ±2.0% reading ± 1.0% range

>2MHz ~ 3MHz ±3.0% reading ± 1.0% range

>3MHz ~ 5MHz ±4.0% reading ± 2.0% range

>5MHz ~ 6MHz ±5.0% reading ± 4.0% range

Resolution

Range (4 1/2 digits Display)

3mV/ 0.0001mV

30mV/ 0.001mV

300mV/ 0.01mV

3V/ 0.0001V

30V/ 0.001V

300V/ 0.01V

Maximum Undamaged Input Voltage

Range: 300V 350Vrms

General Characteristics

Power: AC220(1±10%)V, 50 (1±5%)Hz, < 20VA

Interface: USB Device

Display: LED display

Dimension & Weight: 260×106×375 mm, Approx.3.9 kg

Standard Accessories

Power Cord: 1pcs

Test clip leads: 2pcs

CD(Software+ User's Guide): 1pcs

Application

Factory, Lab, R&D institution, Troops, Colleges and Universities

Design Features

1. LED display, dual independent channels

2. Auto/Manual ranging can be selected.

3. Multi display result with different units.

4. Standard interface USB device and optional LAN interface
