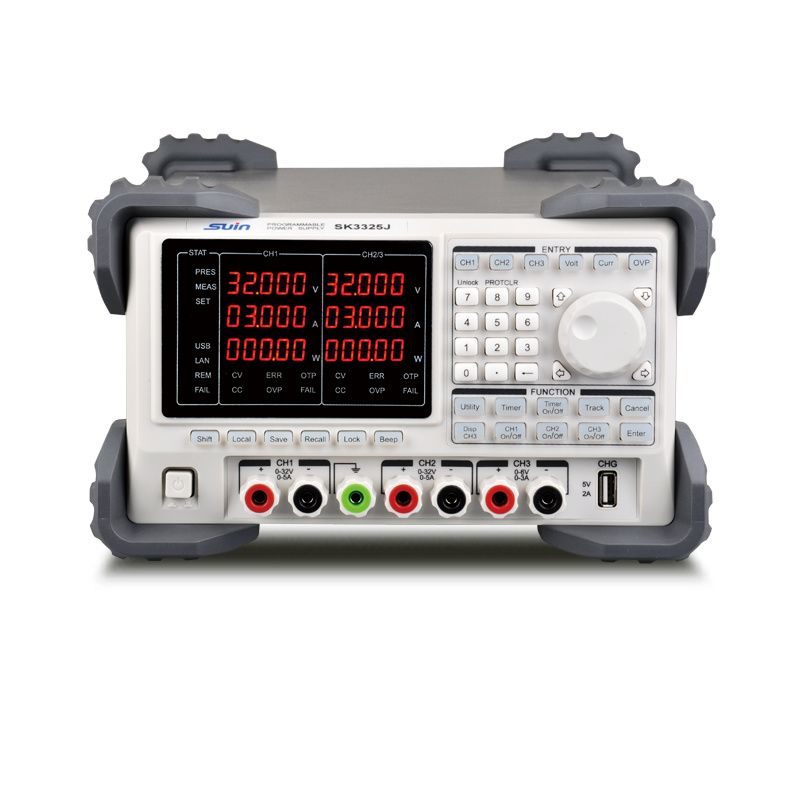

SUIN SK3325J Programmable Linear DC Power Supply (CH1: 32V, 5A, CH2: 0~32V/0~5A, CH3: 0~6V/0~3A)

Channel

CH1: 0~32V/ 0~5A

CH2: 0~32V/ 0~5A

CH3: 0~6V/0~3A

Line Regulation

Voltage

CH1, CH2, CH3: ≤1×10^-4+3mV

Current: CH1, CH2, CH3: ≤1×10^-4+ 500μA

Load Regulation

Voltage

CH1, CH2: ≤1×10^-4+5mV

CH3: ≤1×10^-4+3mV

Current: CH1, CH2, CH3: ≤1×10^-4+ 500μA

Programming/Readback  Accuracy

Voltage

CH1, CH2,CH3: ≤±(0.05%+20mV)

Current

CH1, CH2: ≤±(0.3%+10mA)

CH3: ≤±(2%+20mA)

Ripple and Noise

Voltage: ≤1mVrms

Current: ≤3mArms

Display resolution

Voltage: 1mV

Current : 1mA

Display Digits

Voltage: 5 digits

Current: 4 digits

Other function

Auto Switch of serial and parallel: optional

Timing Output: ●

OTP: ●

OVP : ●

General Characteristics

Rated Voltage: 220-230 (198-242)V

Rated Power: 0.6kW  0.8kVA

Rated Frequency: 50/60 (45-63) Hz

USB charging Interface: 5V 2A

Remote Interface: LAN, USB Device, RS-232

Dimension: 256×160×440mm3

Weight: 10KGs

Standard Accessories

Power Cord: 1pcs

CD( User's Guide): 1pcs

Feature

Three outputs, the maximum power is up to 338W
Lowe Ripple and Noise: ≤1mV / ≤3mA

Standard Timing Output

Comprehensive over-voltage and over-temperature protection

Fully remote control interface: LAN, USB and RS-232

5 digit LED display can show voltage, current and power simultaneously
