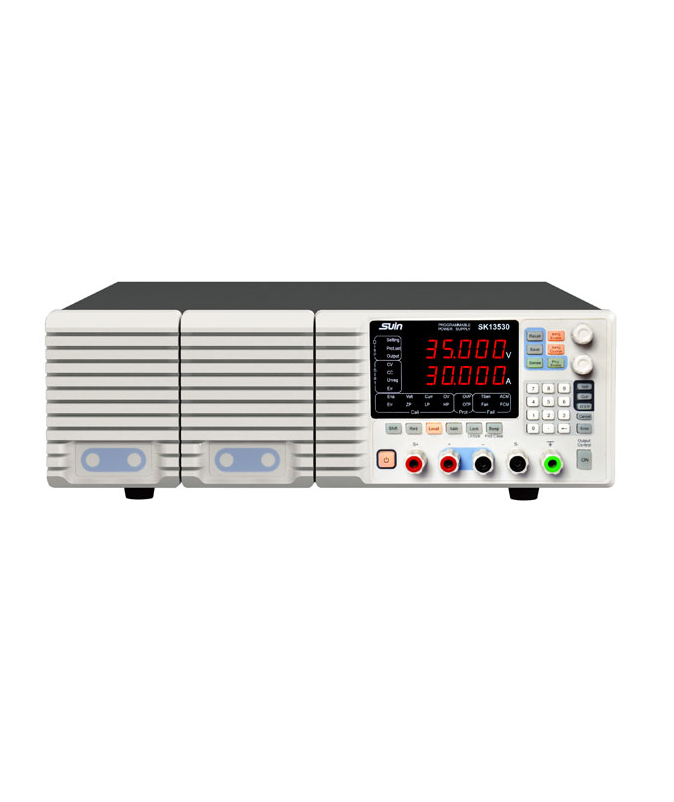

SUIN SK13530K ການສະຫນອງພະລັງງານ DC ທີ່ສາມາດວາງແຜນໄດ້ (35V/30A, 1000W)

Output Range: 35V/30A

Output Power: 1000W

Resolution: 1mV/1mA

Source Effect

CV: ≤1×10^-5+1mV

CC: ≤1×10^-5+3mA

Load Effect

CV: ≤1×10^-4+3mV

CC: ≤1×10^-4+3mA

Period and Random Deviation  (PARD)

CV: ≤1mV

CC: ≤20mA

Accuracy

Voltage: ≤±（0.1%+10mV）

Current: ≤±（0.2%+50mA）

OVP: ≤±（0.5%+0.8V）

General Characteristics

Power: AC220~230(198~242)V, 50(47~63)Hz

Interface: RS-232 (standard)  USB Device(option)

Dimension & Weight: 345×148×475mm, Approx 13kg

Standard Accessories

Power Cord: 1pcs

RS-232 Cable: 1pcs

CD(Software+ User's Guide): 1pcs

Features

All digital controlled, output 1mV/1mA step*

High stability, Low drift

LED display the voltage/current and working status visually

Intelligent temperature controlled fun with low noise

Storage and recall function

OVP (Over Voltage Protection) function

Keypad locked function to avoid the misoperation

Standard RS-232 interface, optional USB device
