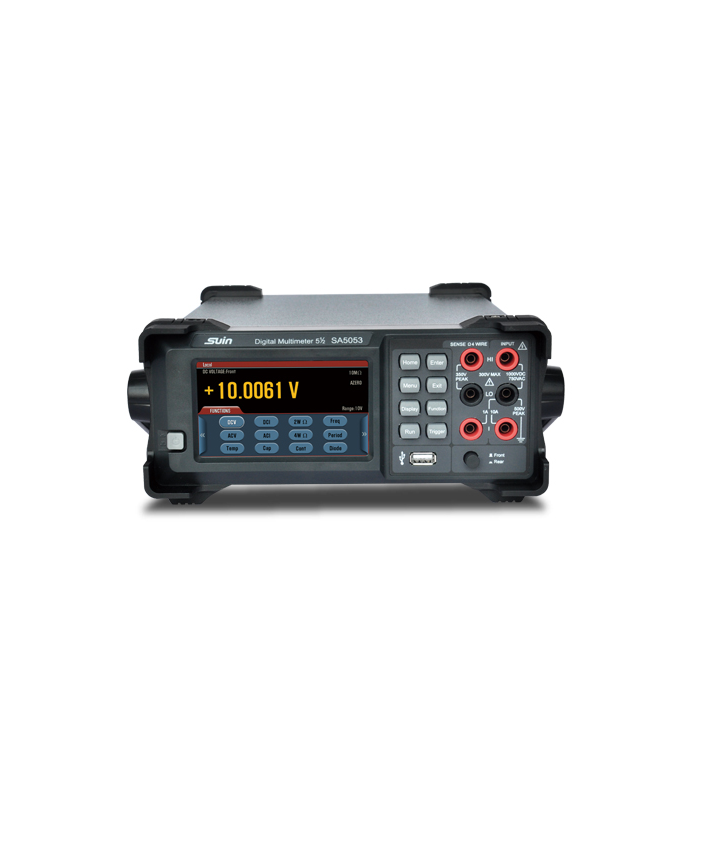

SUIN SA5053 Digital Multimeter (5 ½ digits, 1000VDC, 750VAC, 10AAC/DC)

Range/ Best Accuracy ± (% reading + % range)

DC Voltage: 100mV/1V/10V/100V/1000V/ ± (0.012 +0.005)

AC Voltage: 100mV/1V/10V/100V/750V/ ± (0.2 + 0.1)

DC Current: 100µA/1mA/10mA/100mA/1A/10A/ ± (0.05+0.007)

AC Current: 100µA/1mA/10mA/100mA/1A/10A/ ± (0.5+0.1)

Resistance: 100Ω/1KΩ/10KΩ/100KΩ/1MΩ/10MΩ/100MΩ/ ± (0.03+0.005)

Capacitance: 1nF/ 10nF/ 100nF/1µF/10µF/100µF/ ± (0.2+0.5)

Frequency: 5Hz-1MHz/ ± 0.02

Temperature: - 200℃~ 800℃/ ± 0.2℃(without accuracy of probe)

Features

Reading Rate: 500 reading/s

Auto Range: ●

Diode: ●

Continuity: ●

Trigger: ●

Save/Read: ●

Math: MAX/MIN,Rel,dB, dBm,Limit,Statistic

General Characteristics

Safety: IEC61010-1: 2001, CAT Ⅰ 1000V/CAT Ⅱ 600V, Class of pollution: 2

Interface: USB Host, USB Device,RS-232,LAN, GBIP (optional)

Power: 115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA

Dimension & Weight: 256х106х322 mm, 3.5 kg

Standard Accessories

Power Cord: 1

Temperature probe: 1

Test Lead kit: 1

CD (Software+ User's Guide): 1

Features:

Real 5½ digits readings resolution (119999 counts).

1 μV resolution

True-RMS AC Voltage and AC Current measuring.

4.3-inch color LCD touch screen with double display for easy viewing.

Two sets of input interfaces front and rear, which provides convenience to arrange wires.
 In addition to numerical data display, it also features histograms, trend charts, bar charts, and statistics functions.
