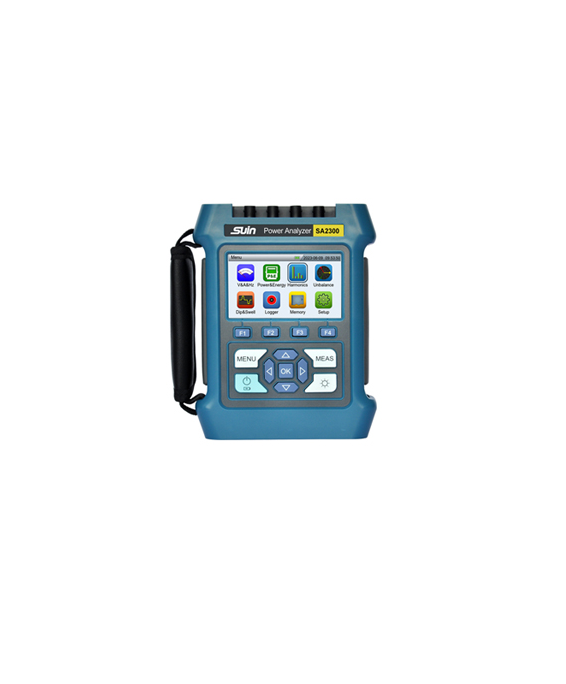

SUIN SA2300 3-Phase Power Analyzer/Datalogger (5~600Vrms)

INPUT: 4 current input channels+4 voltage input channels

3 PHASE MULTI-POWER SYSTEM

1P/2W(1P+NEUTRAL 1P IT NO NEUTRAL)

1P/3W(1P Split Phase)

3P/3W(3P DELTA)

3P/4W (3P WYE)

DATA REFRESH RATE: 1s

MEASUREMENT

Voltage/ACV (Urms, Upk)

Range: 5~600Vrms

Accuracy (L1/A,L2/B,L3/C): ±0.2%±2counts

PT ratio: 1 to 10000, variable

Current/ACA (Irms, Ipk)

Range: 1500A, with SY-1500A current probe

Accuracy: ±0.2%±5counts

Optional current probe: ST08-5A, CTC0080-50A,CTC0130-100A, SY-1500A, PY-3000A, SY-6000A

CT ratio: 1 to 10000, variable

Frequency Range:

42.5-57.5Hz (50Hz nominal)

51-69Hz (60Hz nominal)

Harmonic

Number: 1-51th

Accuracy: ±0.1%±n x 0.1%

THD: ±2.5%

Power: Active power (P), Reactive power(Q), Apparent power(S),  Power Factor (PF), cosФ (DPF)

Energy: Active energy (EP), Reactive entergy(EQ), Apparent energy(ES)

Transient Event: Dips/swell

Logger

Interval: 1s to 60 minutes

Memory: 32G Micro SD card

GENERAL

Display: 4.3 inch color touch screen/480x272

Language: Multi languge including Chinese, English, etc.

Communication Port: USB Host, LAN

Dimension/Weight: 158x200x47mm/1kg

Power: 18650 lithium ion 3.6V x 2, 5100mAh / 6h or DC 5V/3A adapter

Safety standard: IEC61010-1, CATIII 600V

Standard Accessories

Voltage Test Leads and Alligator Clips: 5pcs

DC 5V/3A Power Adapter and Power Cord: 1pcs

Soft Carry Bag: 1pcs

CD(Manual and  PC Software): 1pcs

With the advancement of power equipment, the power grid system is evolving into a more complex network, leading to increasingly challenging fault issues. In response to this, our company has recently introduced the SA2300, a multifunctional, lightweight, and cost-effective power analyzer and meter. The three phase portable power quality analyzer is designed to assist you in swiftly and accurately diagnosing faults within the power system, enabling more thorough and systematic monitoring of power quality.

The SA2300 is extensively utilized for monitoring power quality and tracing faults across various applications.

Application

The three-phase power analyzer is a specialized portable device designed for monitoring and analyzing the operational quality of power grids. It is capable of providing harmonic and power measurements during power operations, along with the ability to record and store long-term data of power grid operations.

The 3-Phase Power and Harmonic Analyzer finds application in various sectors such as electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc. It is particularly well-suited for conducting comprehensive analysis and diagnosis of various electrical parameters including voltage, current, power, electric energy, harmonics, and phase.

Design Features

Economical, compact and simple to use

Provide all necessary measurement function

4.3 inch color LCD touch screen

32GB Micro SD card is used for storage
