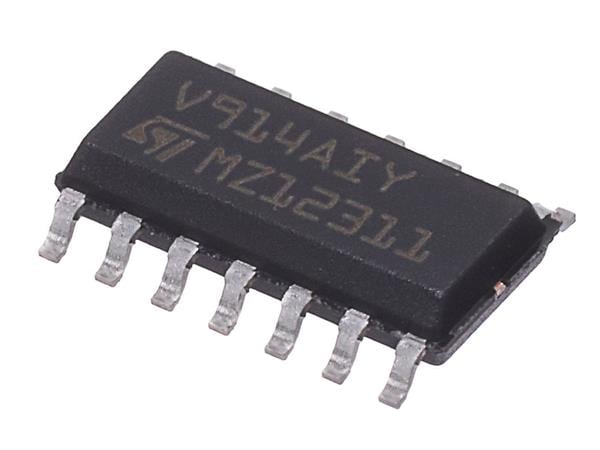

STMicroelectronics TSV914AIYDT ເຄື່ອງຂະຫຍາຍສະຖານະການດຳເນີນງານ ຄວາມກວ້າງແລະບັນທຸກ (8MHz) ຮອບກັບຮອບຂາຍຂອງການປ້ອນ/ອອກ 5V CMOS Op-Amps, ອອຟເຊັນນ້ອຍ, q

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Unit Weight: 130 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

SR - Slew Rate: 4.5 V/us

THD plus Noise: 0.0004 %

Number of Channels: 4 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Ib - Input Bias Current: 10 pA

Operating Supply Current: 780 uA

Vcm - Common Mode Voltage: 5.6 V

Ios - Input Offset Current: 10 pA

Output Current per Channel: 35 mA

Vos - Input Offset Voltage: 1.5 mV

GBP - Gain Bandwidth Product: 8 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 27 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 82 dB

PSRR - Power Supply Rejection Ratio: 86 dB
