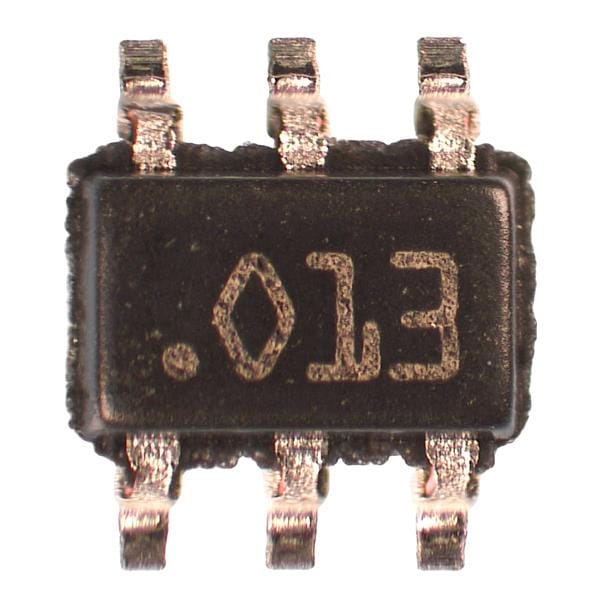

STMicroelectronics TSC213ICT ເຄື່ອງຂະຫນາດກະຕຸ້ນກະທົບກະຕຸ້ນກະທົບກະທົບກະທົບກະທົບກະທົບກະທົບກະທົບກະທົບ Low / High side bidirectional, zero-drift, current sense amplifiers

Gain V/V: 50 V/V

Shutdown: No Shutdown

Gain Error: 0.02 %

Unit Weight: 7 mg

Amplifier Type: Zero-Drift

Mounting Style: SMD/SMT

SR - Slew Rate: 0.85 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 26 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 28 uA

Operating Supply Current: 65 uA

Vcm - Common Mode Voltage: - 300 mV to 26 V

Ios - Input Offset Current: 20 nA

Vos - Input Offset Voltage: 100 uV

GBP - Gain Bandwidth Product: 100 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 38 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 100 dB
