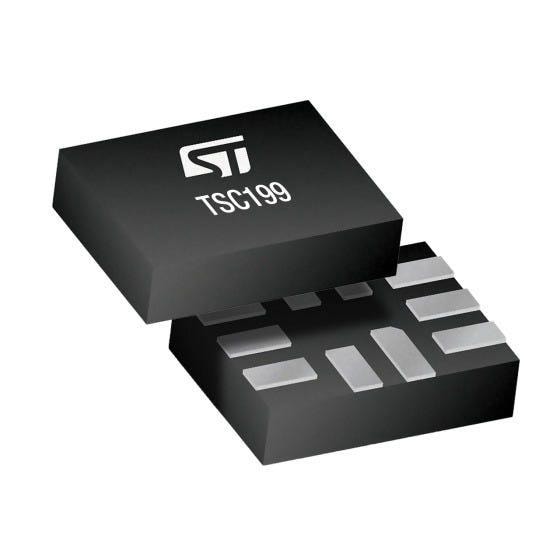

STMicroelectronics TSC199A2IQT ເພີ່ມກຳລັງດ້ານຕ່ຳ / ດ້ານສູງ ທີ່ມີທິດທາງສອງທາງ, ການເຄື່ອນໄຫວເປັນສະຫຼຸບ, ເພີ່ມກຳລັງວິເຄາະກຳລັງກະທົບ

Gain V/V: 100 V/V

Shutdown: No Shutdown

Gain Error: 1.5 %

Output Type: Single-Ended

Unit Weight: 4 mg

3 dB Bandwidth: 25 kHz

Mounting Style: SMD/SMT

SR - Slew Rate: 0.32 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 26 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 28 uA

Operating Supply Current: 65 uA

Vcm - Common Mode Voltage: 26 V

Ios - Input Offset Current: 20 nA

Vos - Input Offset Voltage: 150 uV

GBP - Gain Bandwidth Product: 40 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 40 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 120 dB

PSRR - Power Supply Rejection Ratio: 0.1 uV/V
