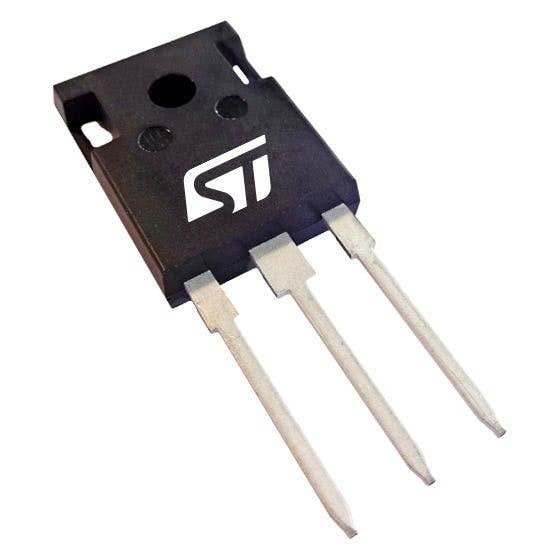

STMicroelectronics STWA68N60M6 MOSFETs N-channel 600 V, 35 mOhm typ 63 A MDmesh M6 Power MOSFET

Fall Time: 8 ns

Rise Time: 27 ns

Technology: Si

Unit Weight: 6 g

Channel Mode: Enhancement

Configuration: Single

Mounting Style: Through Hole

Transistor Type: 1 N Channel

Qg - Gate Charge: 106 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 390 W

Vgs - Gate-Source Voltage: - 25 V, + 25 V

Typical Turn-On Delay Time: 42 ns

Typical Turn-Off Delay Time: 130 ns

Id - Continuous Drain Current: 63 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 41 mOhms

Vds - Drain-Source Breakdown Voltage: 600 V

Vgs th - Gate-Source Threshold Voltage: 3.25 V
