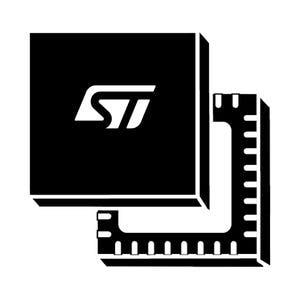

STMicroelectronics STM32WB15CCU7 RF Microcontrollers - MCU Ultra-low-power dual core Arm Cortex-M4 MCU 64 MHz Cortex-M0+ 32 MHz w/320 Kbyte

Core: ARM Cortex M0+, ARM Cortex M4

Technology: Si

Data RAM Size: 48 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 30 I/O

Moisture Sensitive: Yes

Program Memory Size: 320 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Number of ADC Channels: 13 Channel

Maximum Clock Frequency: 64 MHz

Operating Supply Voltage: 1.71 V to 3.6 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
