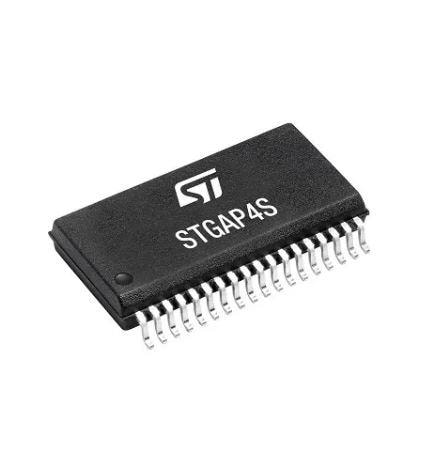

STMicroelectronics STGAP4STR ຄວບຄຸມປະຕູທີ່ແຍກອິລັກທຣິກ Galvanically Isolated Gate Drivers SSOP 36 LD 300 MIL .0315 PITCH

Features: AEC-Q100 Qualified

Shutdown: Shutdown

Fall Time: 45 ns

Rise Time: 15 ns

Logic Type: Rail to Rail

Technology: SiC

Configuration: Single

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 2.4 A

Isolation Voltage: 5330 Vrms

Number of Drivers: 1

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Propagation Delay - Max: 100 ns

Maximum Turn-On Delay Time: 100 ns

Maximum Turn-Off Delay Time: 100 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 4.5 Ohms

Maximum Continuous Output Current: 2.5 A
