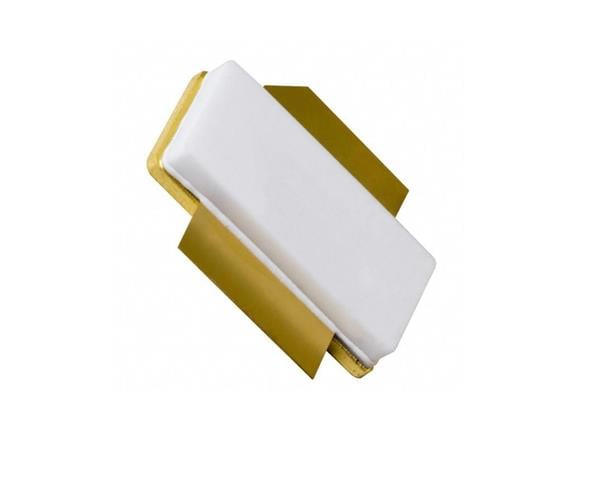

STMicroelectronics SD57045-01 RF Power MOSFET N-Ch 65 Volt 5 Amp

Gain: 13 dB

Width: 6.09 mm

Height: 3.94 mm

Length: 9.91 mm

Technology: Si

Unit Weight: 880 mg

Channel Mode: Enhancement

Output Power: 45 W

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: LDMOS FET

Operating Frequency: 1 GHz

Transistor Polarity: N-Channel

Pd - Power Dissipation: 93 W

Vgs - Gate-Source Voltage: + 20 V

Id - Continuous Drain Current: 5 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

Forward Transconductance - Min: 2.7 S

Vds - Drain-Source Breakdown Voltage: 65 V
