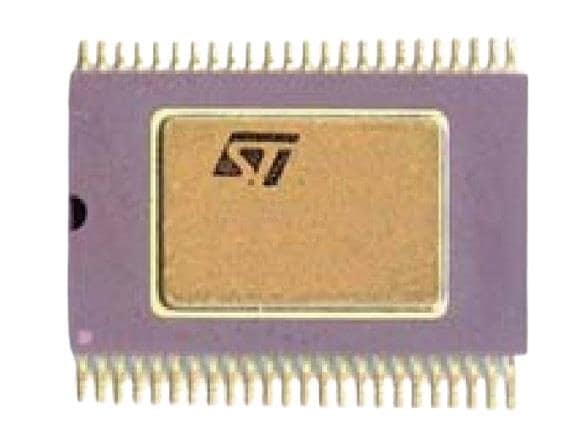

STMicroelectronics RHF1201KSO1 ຕົວແປສັບປ່ຽນ A/D ທີ່ທົນຕໍ່ລະຫວ່າງລະດັບການກະທົບສູງ Rad-hard 12-bit 50 Msps A/D converter - ແບບວິສະວະກຳ

Shutdown: No Shutdown

Gain Error: 0.3 %

Input Type: Differential

Resolution: 12 bit

Output Type: CMOS

Architecture: Pipeline

Sampling Rate: 50 MS/s

Mounting Style: SMD/SMT

Reference Type: External

Development Kit: EVAL-RHF1201V2

Reference Voltage: 500 mV, 1.4 V

Number of Channels: 10 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 2.7 V

Supply Voltage - Min: 2.3 V

Analog Supply Voltage: 2.3 V to 2.7 V

Digital Supply Voltage: 2.3 V to 2.7 V

FPBW - Full Power Bandwidth: 95 MHz

INL - Integral Nonlinearity: 1.7 LSB

SNR - Signal to Noise Ratio: 63 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

DNL - Differential Nonlinearity: 0.5 LSB

ENOB - Effective Number of Bits: 10.3 bit

THD - Total Harmonic Distortion: - 76 dB

SFDR - Spurious Free Dynamic Range: - 75 dBc

SINAD - Signal to Noise and Distortion Ratio: 63 dB
