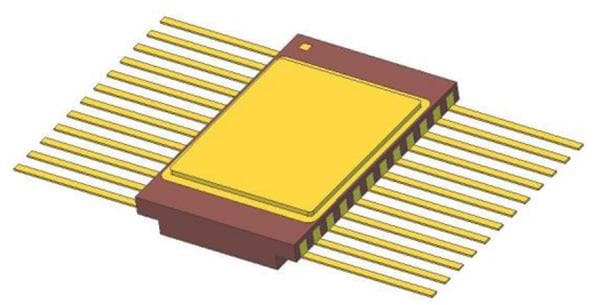

STMicroelectronics RH-DAC1612K1 ຕົວແປດິຈິຕອນເປັນອານາລອກ ລະດັບສູງທີ່ທົນຕໍ່ລະບົບກົດໝາຍການສົ່ງລະດັບສູງ DAC - ແບບວິສັດສາດ

Shutdown: No Shutdown

Gain Error: 0.55 %

Input Type: Single Ended

Resolution: 16 bit

Output Type: Voltage

Architecture: Sigma-Delta

Sampling Rate: 12 kS/s

Settling Time: 800 us

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External, Internal

Reference Voltage: 1.2 V

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Analog Supply Voltage: 3 V to 3.6 V

Digital Supply Voltage: 3 V to 3.6 V

Pd - Power Dissipation: 15 mW

INL - Integral Nonlinearity: 2.5 LSB

SNR - Signal to Noise Ratio: 96 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

DNL - Differential Nonlinearity: 0.3 LSB

THD - Total Harmonic Distortion: - 89.5 dBc

SFDR - Spurious Free Dynamic Range: 89.5 dBc
