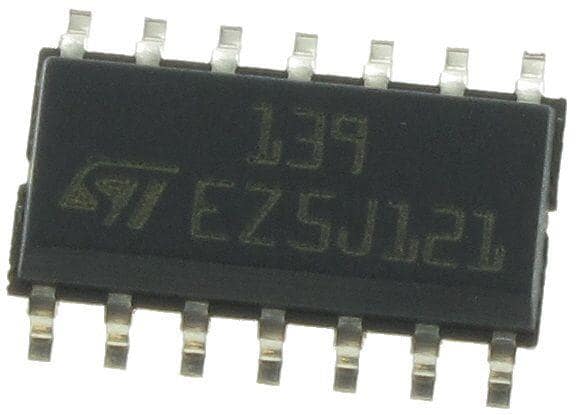

STMicroelectronics LM139DT ອະນາໂລກ ຄອມເພີເຕີຣ໌ ລົວ ພວີອາລະດັບຕໍ່ຕໍ່ 1.1 mA 25nA 250mV

Shutdown: No Shutdown

Output Type: CMOS, DTL, ECL, MOS, TTL

Unit Weight: 241 mg

Response Time: 1.3 us

Mounting Style: SMD/SMT

Comparator Type: Differential

Number of Channels: 4 Channel

Supply Voltage - Max: 32 V

Supply Voltage - Min: 2 V

Pd - Power Dissipation: 830 mW

Ib - Input Bias Current: 250 nA

Operating Supply Current: 2 mA

Operating Supply Voltage: 3 V, 5 V, 9 V

Output Current per Channel: 4 mA

Vos - Input Offset Voltage: 5 mV

Minimum Dual Supply Voltage: 1 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
