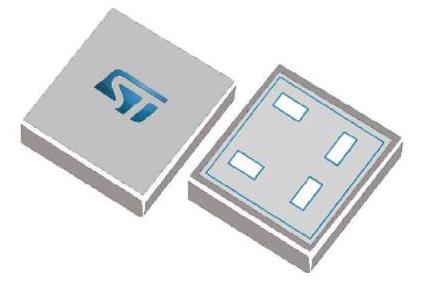

STMicroelectronics LDBL20D-12R ຕົວຄວບຄຸມແຮງໂປດແບບເສັ້ນສະເໜີ 200 mA ຕົວຄວບຄຸມແຮງໂປດແບບເສັ້ນທີ່ມີກຳລັງກິດຈະກຳຕ່ຳຫຼາຍ IC ໃນ (0.47x0.47) mm2 ST STAM

Polarity: Positive

Output Type: Fixed

Unit Weight: 0.380 mg

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 1.2 V

Dropout Voltage: 200 mV

Line Regulation: 0.02 %/V

Load Regulation: 10 mV

Number of Outputs: 1 Output

Quiescent Current: 100 uA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.5 V

Dropout Voltage - Max: 350 mV

Voltage Regulation Accuracy: 1.5 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 55 dB
