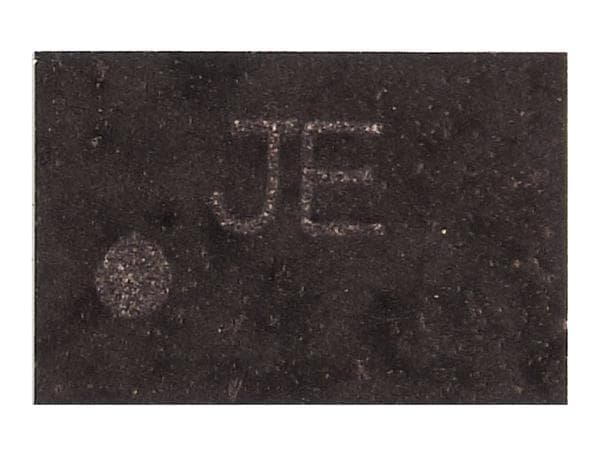

STMicroelectronics LD57100J120R Ultra Low-Dropout LDO 1A Ultra low dropout LDO ມີ Bias

Polarity: Positive

Tolerance: 1 %

Output Type: Fixed

Unit Weight: 7 mg

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 1.2 V

Dropout Voltage: 40 mV

Number of Outputs: 1 Output

Quiescent Current: 100 nA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Dropout Voltage - Max: 80 mV at 1 A

Ib - Input Bias Current: 35 uA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
