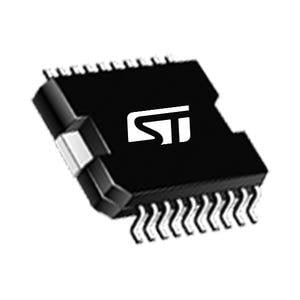

STMicroelectronics E-TDA7391PDTR ອຸປະກອນປຸງສຽງດິຈິຕອນຄວບຄຸມໂມໂນ 1-Channel

Gain: 30 dB

Class: Class-AB

Width: 11.1 mm

Height: 3.3 mm

Length: 16 mm

Input Type: Differential

Output Type: 1-Channel Mono

Supply Type: Single

Unit Weight: 2 g

Output Power: 40 W

Mounting Style: SMD/SMT

Output Current: 6 A

THD plus Noise: 0.03 %

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Output Signal Type: Differential

Description/Function: Speaker

Supply Voltage - Max: 18 V

Supply Voltage - Min: 8 V

Audio - Load Impedance: 4 Ohms

Pd - Power Dissipation: 32 W

Ib - Input Bias Current: 10 uA

Operating Supply Voltage: 9 V, 12 V, 15 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 65 dB
