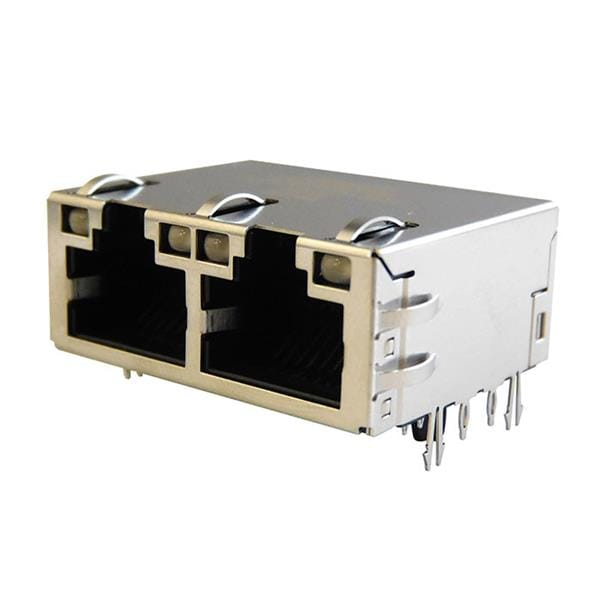

Stewart Connector SS-74810-002 ຕູ້ຕໍ່ສາຍ Modular RJ45 Press-Fit 1x2 ພອດ ແບບຮອຍງ່າຍ ມີປ້ອງກັນສະເຫຼີມສະເຫຼີມ ແລະ ໄຟ LED ສອງສີ Y/G

Color: Black

Pitch: 2.03 mm

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 1G/2.5G Base-T

Configuration: 1x2

Tab Direction: Tab Up

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: PCB Mount

Contact Plating: Gold

LED L / R Color: Green / Yellow

Number of Ports: 2 Port

Contact Material: Phosphor Bronze

Termination Style: Through Hole

Mounting Direction: Horizontal

Number of Contacts: 8 Contact

Flammability Rating: UL94 V-0

Number of Positions: 8 Position

Performance Category: Cat 6

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
