Sterling Sensors TMSPIT6MM02M0022 ແຮ່ Insulated Thermocouple ກັບ Plug ມາດຕະຖານ (Type T 321 6x2000mm; -200~1200°C) | EMIN.COM.LA

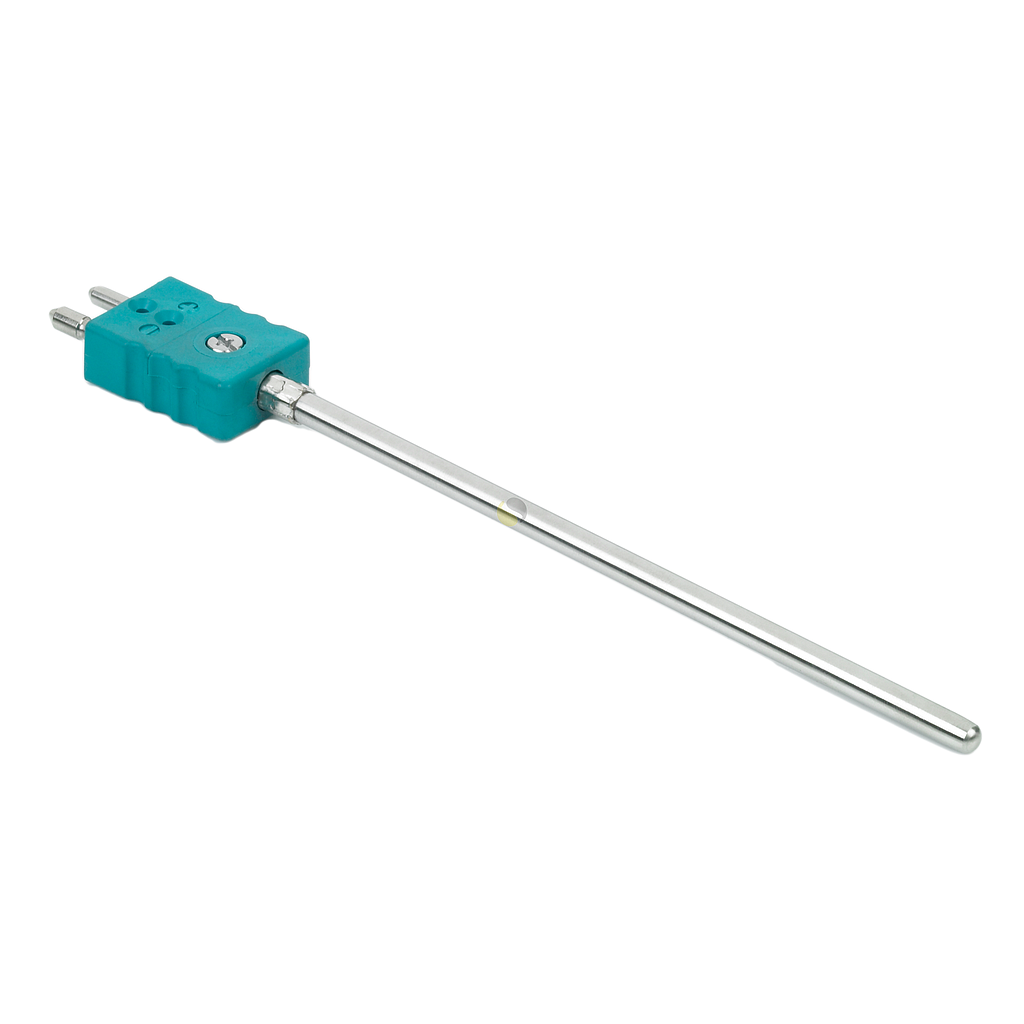

Product image

Sterling Sensors TMSPIT6MM02M0022 ແຮ່ Insulated Thermocouple ກັບ Plug ມາດຕະຖານ (Type T 321 6x2000mm; -200~1200°C)

ຜູ້ຜະລິດSterling Sensors(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelTMSPIT6MM02M0022

ຕົ້ນກຳເນີດUnited Kingdom

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Specification

Features

Wide temperature range capability
Can be formed and shaped to fit the process
Insulated, grounded and exposed tips available
Polarised standard plug connection
Wide range of lengths and diameters

Application

Temperature profiling
Research and development
Heat treatment

1.5mm Diameter 310 Stainless Steel Type K

Description	Part Number
Type K 310 1.5mm x 100mm	TMSPIK1.51000012
Type K 310 1.5mm x 200mm	TMSPIK1.52000012
Type K 310 1.5mm x 300mm	TMSPIK1.53000012
Type K 310 1.5mm x 500mm	TMSPIK1.55000012
Type K 310 1.5mm x 1000mm	TMSPIK1.501M0012

1.5mm Diameter Inconel 600 Type K

Description	Part Number
Type K Inc 1.5mm x 100mm	TMSPIK1.51000042
Type K Inc 1.5mm x 200mm	TMSPIK1.52000042
Type K Inc 1.5mm x 300mm	TMSPIK1.53000042
Type K Inc 1.5mm x 500mm	TMSPIK1.55000042
Type K Inc 1.5mm x 1000mm	TMSPIK1.501M0042

3mm Diameter 310 Stainless Steel Type K

Description	Part Number
Type K 310 3mm x 100mm	TMSPIK3MM1000012
Type K 310 3mm x 150mm	TMSPIK3MM1500012
Type K 310 3mm x 200mm	TMSPIK3MM2000012
Type K 310 3mm x 300mm	TMSPIK3MM3000012
Type K 310 3mm x 400mm	TMSPIK3MM4000012
Type K 310 3mm x 500mm	TMSPIK3MM5000012
Type K 310 3mm x 750mm	TMSPIK3MM7500012
Type K 310 3mm x 1000mm	TMSPIK3MM01M0012
Type K Inc 3mm x 1500mm	TMSPIK3MM1.50012
Type K 310 3mm x 2000mm	TMSPIK3MM02M0012
Type K 310 3mm x 3000mm	TMSPIK3MM03M0012

3mm Diameter Inconel 600 Type K

Description	Part Number
Type K Inc 3mm x 100mm	TMSPIK3MM1000042
Type K Inc 3mm x 150mm	TMSPIK3MM1500042
Type K Inc 3mm x 200mm	TMSPIK3MM2000042
Type K Inc 3mm x 250mm	TMSPIK3MM2500042
Type K Inc 3mm x 300mm	TMSPIK3MM3000042
Type K Inc 3mm x 400mm	TMSPIK3MM4000042
Type K Inc 3mm x 500mm	TMSPIK3MM5000042
Type K Inc 3mm x 750mm	TMSPIK3MM7500042
Type K Inc 3mm x 1000mm	TMSPIK3MM01M0042
Type K 310 3mm x 1500mm	TMSPIK3MM1.50042
Type K Inc 3mm x 2000mm	TMSPIK3MM02M0042
Type K Inc 3mm x 3000mm	TMSPIK3MM03M0042

3mm Diameter 321 Stainless Steel Type J

Description	Part Number
Type J 321 3mm x 100mm	TMSPIJ3MM1000022
Type J 321 3mm x 150mm	TMSPIJ3MM1500022
Type J 321 3mm x 300mm	TMSPIJ3MM3000022
Type J 321 3mm x 500mm	TMSPIJ3MM5000022
Type J 321 3mm x 1000mm	TMSPIJ3MM01M0022
Type J 321 3mm x 2000mm	TMSPIJ3MM02M0022

3mm Diameter 321 Stainless Steel Type T

Description	Part Number
Type T 321 3mm x 100mm	TMSPIT3MM1000022
Type T 321 3mm x 150mm	TMSPIT3MM1500022
Type T 321 3mm x 300mm	TMSPIT3MM3000022
Type T 321 3mm x 500mm	TMSPIT3MM5000022
Type T 321 3mm x 1000mm	TMSPIT3MM01M0022
Type T 321 3mm x 2000mm	TMSPIT3MM02M0022

4.5mm Diameter 310 Stainless Steel Type K

Description	Part Number
Type K 310 4.5mm x 100mm	TMSPIK4.51000012
Type K 310 4.5mm x 200mm	TMSPIK4.52000012
Type K 310 4.5mm x 300mm	TMSPIK4.53000012
Type K 310 4.5mm x 400mm	TMSPIK4.54000012
Type K 310 4.5mm x 500mm	TMSPIK4.55000012
Type K 310 4.5mm x 750mm	TMSPIK4.57500012
Type K 310 4.5mm x 1000mm	TMSPIK4.501M0012
Type K 310 4.5mm x 1500mm	TMSPIK4.51.50012
Type K 310 4.5mm x 2000mm	TMSPIK4.502M0012
Type K 310 4.5mm x 3000mm	TMSPIK4.503M0012

4.5mm Diameter Inconel 600 Type K

Description	Part Number
Type K Inc 4.5mm x 100mm	TMSPIK4.51000042
Type K Inc 4.5mm x 150mm	TMSPIK4.51500042
Type K Inc 4.5mm x 200mm	TMSPIK4.52000042
Type K Inc 4.5mm x 300mm	TMSPIK4.53000042
Type K Inc 4.5mm x 500mm	TMSPIK4.55000042
Type K Inc 4.5mm x 1000mm	TMSPIK4.501M0042

4.5mm Diameter 321 Stainless Steel Type J

Description	Part Number
Type J 321 4.5mm x 100mm	TMSPIJ4.51000022
Type J 321 4.5mm x 300mm	TMSPIJ4.53000022
Type J 321 4.5mm x 500mm	TMSPIJ4.55000022
Type J 321 4.5mm x 1000mm	TMSPIJ4.501M0022

4.5mm Diameter 321 Stainless Steel Type T

Description	Part Number
Type T 321 4.5mm x 100mm	TMSPIT4.51000022
Type T 321 4.5mm x 300mm	TMSPIT4.53000022
Type T 321 4.5mm x 500mm	TMSPIT4.55000022
Type T 321 4.5mm x 1000mm	TMSPIT4.501M0022

6mm Diameter 310 Stainless Steel Type K

Description	Part Number
Type K 310 6mm x 100mm	TMSPIK6MM1000012
Type K 310 6mm x 150mm	TMSPIK6MM1500012
Type K 310 6mm x 200mm	TMSPIK6MM2000012
Type K 310 6mm x 250mm	TMSPIK6MM2500012
Type K 310 6mm x 300mm	TMSPIK6MM3000012
Type K 310 6mm x 400mm	TMSPIK6MM4000012
Type K 310 6mm x 500mm	TMSPIK6MM5000012
Type K 310 6mm x 750mm	TMSPIK6MM7500012
Type K 310 6mm x 1000mm	TMSPIK6MM01M0012
Type K 310 6mm x 2000mm	TMSPIK6MM02M0012
Type K 310 6mm x 3000mm	TMSPIK6MM03M0012

6mm Diameter Inconel 600 Type K

Description	Part Number
Type K Inc 6mm x 100mm	TMSPIK6MM1000042
Type K Inc 6mm x 150mm	TMSPIK6MM1500042
Type K Inc 6mm x 200mm	TMSPIK6MM2000042
Type K Inc 6mm x 250mm	TMSPIK6MM2500042
Type K Inc 6mm x 300mm	TMSPIK6MM3000042
Type K Inc 6mm x 400mm	TMSPIK6MM4000042
Type K Inc 6mm x 500mm	TMSPIK6MM5000042
Type K Inc 6mm x 750mm	TMSPIK6MM7500042
Type K Inc 6mm x 1000mm	TMSPIK6MM01M0042
Type K Inc 6mm x 1500mm	TMSPIK6MM1.50042
Type K Inc 6mm x 2000mm	TMSPIK6MM02M0042
Type K Inc 6mm x 3000mm	TMSPIK6MM03M0042

6mm Diameter 321 Stainless Steel Type J

Description	Part Number
Type J 321 6mm x 100mm	TMSPIJ6MM1000022
Type J 321 6mm x 150mm	TMSPIJ6MM1500022
Type J 321 6mm x 300mm	TMSPIJ6MM3000022
Type J 321 6mm x 500mm	TMSPIJ6MM5000022
Type J 321 6mm x 1000mm	TMSPIJ6MM01M0022
Type J 321 6mm x 2000mm	TMSPIJ6MM02M0022

6mm Diameter 321 Stainless Steel Type T

Description	Part Number
Type T 321 6mm x 100mm	TMSPIT6MM1000022
Type T 321 6mm x 150mm	TMSPIT6MM1500022
Type T 321 6mm x 300mm	TMSPIT6MM3000022
Type T 321 6mm x 500mm	TMSPIT6MM5000022
Type T 321 6mm x 1000mm	TMSPIT6MM01M0022
Type T 321 6mm x 2000mm	TMSPIT6MM02M0022

Datasheet
