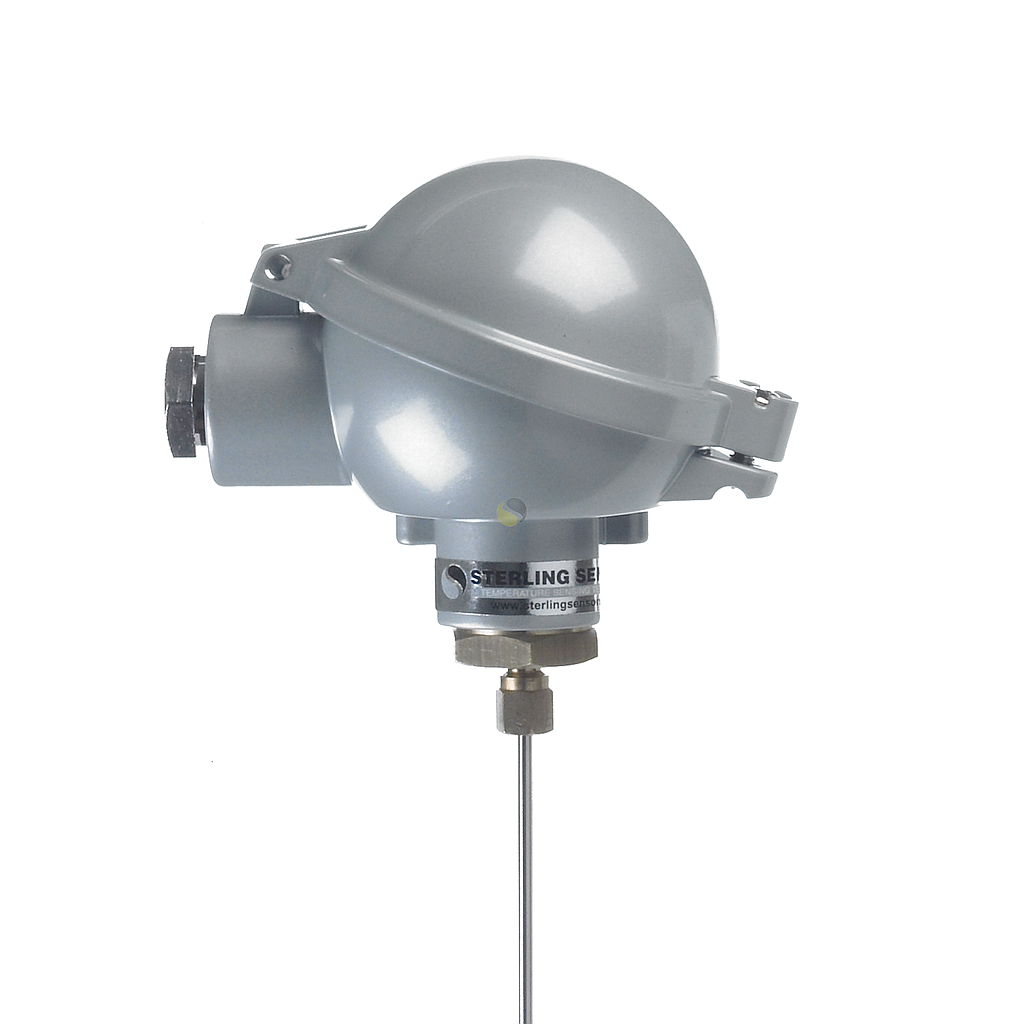

Sterling Sensors RMBHI33MM500006B ແຮ່ທາດ Insulated RTD ກັບຫົວອຸດສາຫະກໍາ (BUZ). (Pt100 3-wire class B Ø3x500mm; -100~600°C)

Name: Sterling Sensors RMBHI33MM500006B ແຮ່ທາດ Insulated RTD ກັບຫົວອຸດສາຫະກໍາ (BUZ). (Pt100 3-wire class B Ø3x500mm; -100~600°C)
Brand: Sterling Sensors
Availability: OutOfStock

ຜູ້ຜະລິດSterling Sensors(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ຕິດຕາມຂ່າວສານ ແລະ ຂໍ້ສະເໜີ

ຮັບສ່ວນຫຼຸດພິເສດຕາມປະລິມານ, ອັບເດດລາຄາຂາຍສົ່ງ ແລະ ການແຈ້ງເຕືອນສິນຄ້າໃໝ່ສົ່ງກົງເຖິງອິນບັອກຂອງທ່ານ.

ໂດຍການສະໝັກສະມາຊິກ, ທ່ານຍອມຮັບ ເງື່ອນໄຂການໃຫ້ບໍລິການ ແລະ ນະໂຍບາຍຄວາມເປັນສ່ວນຕົວ ຂອງພວກເຮົາ.

ການຊ່ວຍເຫຼືໍາດ່ວນ

ເຂົ້າເຖິງຜູ້ຊ່ຽວຊານທີ່ໄດ້ຮັບການຢັ້ງຢືນຂອງພວກເຮົາໂດຍກົງ

Product	Mineral Insulated RTD with Industrial (BUZ)
Head	Type Pt100
Temp Range	-100 to 600°C
Diameter	6.0mm or 8.0mm
Probe Length	150, 250 & 300, 400, 500mm & 1m standard or to order
Material	316 stainless steel sheath
Accuracy	Class B
Connection	4 wire ceramic terminal block or in-head transmitter
Terminal Head	IP68 weather-proof BUZ head
Cable Entry	M20
Part Number	RMBHI

Description	Part Number
3-wire class B 3mm dia x 150mm (316)	RMBHI33MM150006B
3-wire class B 3mm dia x 250mm (316)	RMBHI33MM250006B
3-wire class B 3mm dia x 300mm (316)	RMBHI33MM300006B
3-wire class B 3mm dia x 400mm (316)	RMBHI33MM400006B
3-wire class B 3mm dia x 500mm (316)	RMBHI33MM500006B
3-wire class B 3mm dia x 1000mm (316)	RMBHI33MM01M006B

Description	Part Number
3-wire class B 6mm dia x 150mm (316)	RMBHI36MM150006B
3-wire class B 6mm dia x 250mm (316)	RMBHI36MM250006B
3-wire class B 6mm dia x 300mm (316)	RMBHI36MM300006B
3-wire class B 6mm dia x 400mm (316)	RMBHI36MM400006B
3-wire class B 6mm dia x 500mm (316)	RMBHI36MM500006B
3-wire class B 6mm dia x 1000mm (316)	RMBHI36MM01M006B

Description	Part Number
RTD in-head Transmitter	IXINHP
ATEX RTD	IXATEP

Sterling Sensors RMBHI33MM500006B ແຮ່ທາດ Insulated RTD ກັບຫົວອຸດສາຫະກໍາ (BUZ). (Pt100 3-wire class B Ø3x500mm; -100~600°C)

Features

Application
