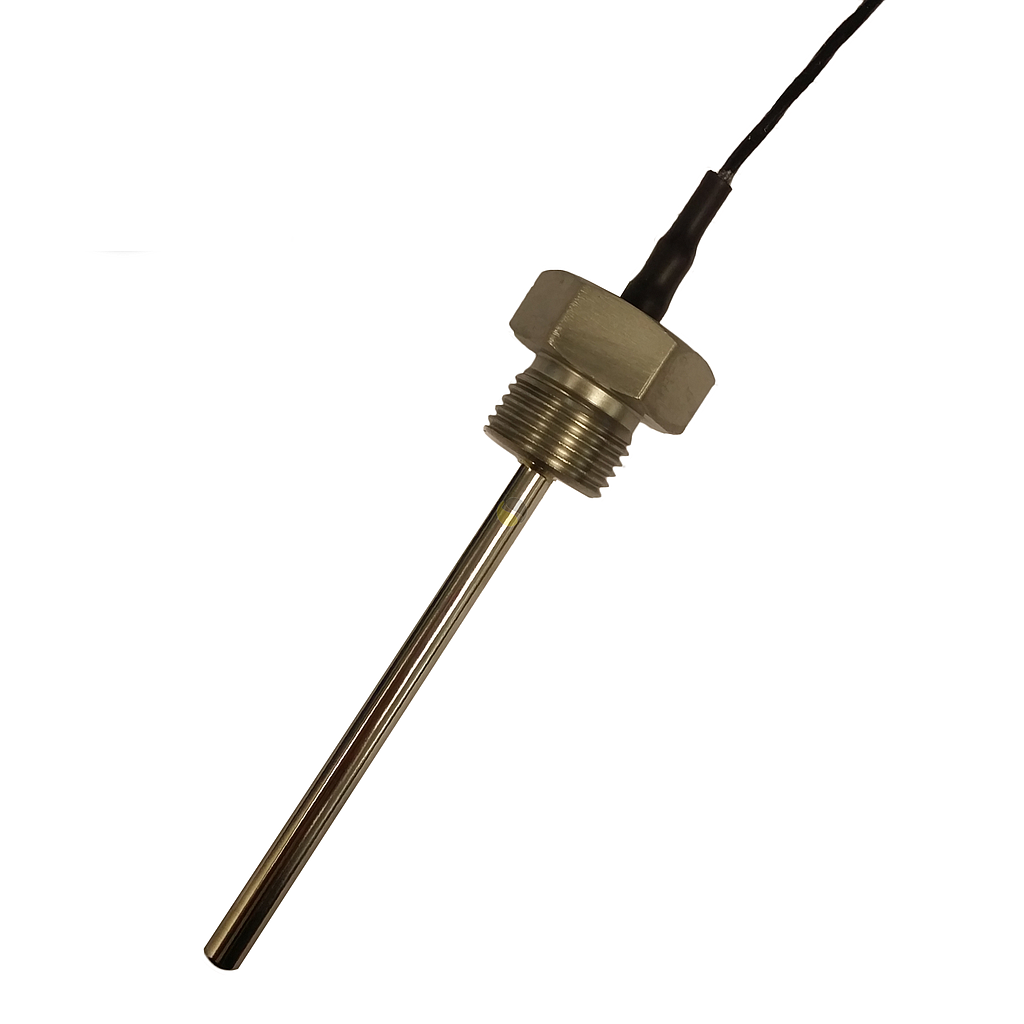

Sterling Sensors RFTHR36MM0501GP7 RTD ກັບຂະບວນການເຊື່ອມຕໍ່ (1/2" BSPP; 50x6mm 3-wire Pt100; -50~250°C)

Name: Sterling Sensors RFTHR36MM0501GP7 RTD ກັບຂະບວນການເຊື່ອມຕໍ່ (1/2" BSPP; 50x6mm 3-wire Pt100; -50~250°C)
Brand: Sterling Sensors
Availability: OutOfStock

ຜູ້ຜະລິດSterling Sensors(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ຕິດຕາມຂ່າວສານ ແລະ ຂໍ້ສະເໜີ

ຮັບສ່ວນຫຼຸດພິເສດຕາມປະລິມານ, ອັບເດດລາຄາຂາຍສົ່ງ ແລະ ການແຈ້ງເຕືອນສິນຄ້າໃໝ່ສົ່ງກົງເຖິງອິນບັອກຂອງທ່ານ.

ໂດຍການສະໝັກສະມາຊິກ, ທ່ານຍອມຮັບ ເງື່ອນໄຂການໃຫ້ບໍລິການ ແລະ ນະໂຍບາຍຄວາມເປັນສ່ວນຕົວ ຂອງພວກເຮົາ.

ການຊ່ວຍເຫຼືໍາດ່ວນ

ເຂົ້າເຖິງຜູ້ຊ່ຽວຊານທີ່ໄດ້ຮັບການຢັ້ງຢືນຂອງພວກເຮົາໂດຍກົງ

Product	RTD with Process Connection
Type	Pt100 3 wire
Temp Range	-50 to 250°C
Length	50, 100, 150, 200 & 250mm as standard
Diameter	6mm
Connection	½” BSPP and ¼” BSPP
Accuracy	Class B
Material	316 Stainless Steel
Termination	Stripped leads
Part Number	RFTHR

Description	Part Number
50mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM0501GP7
100mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM1001GP7
150mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM1501GP7
200mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM2001GP7
250mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM2501GP7

Description	Part Number
50mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM0501DP7
100mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM1001DP7
150mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM1501DP7
200mm x 6mm, 3 wire Pt100 Class B	RFTHR36MM2001DP7
250mm x 6mm 3 wire Pt100 Class B	RFTHR36MM2501DP7

Sterling Sensors RFTHR36MM0501GP7 RTD ກັບຂະບວນການເຊື່ອມຕໍ່ (1/2" BSPP; 50x6mm 3-wire Pt100; -50~250°C)

Features

Applications
