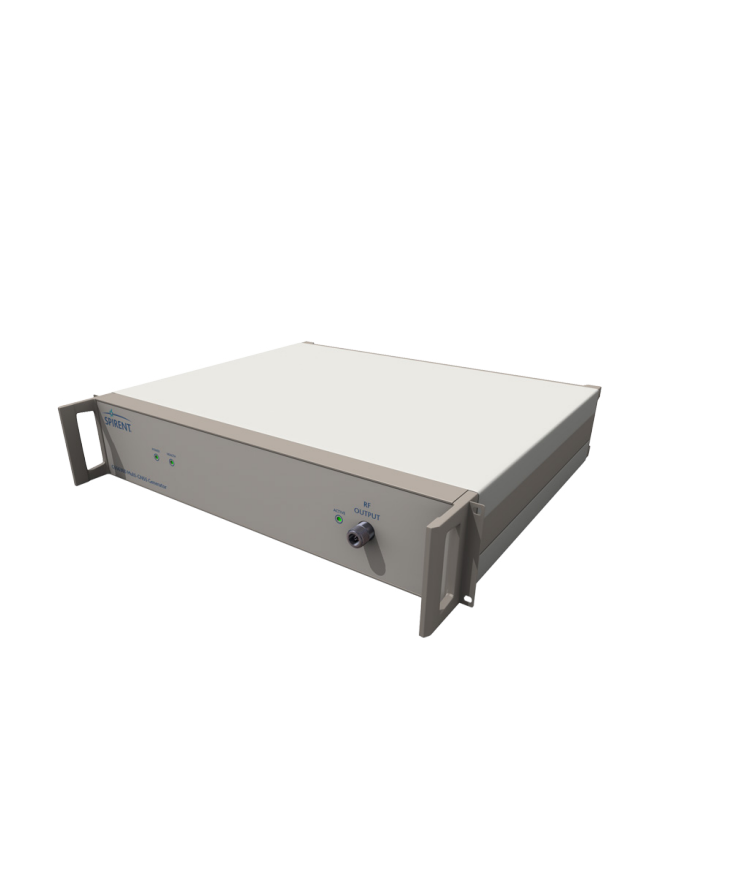

Spirent GSS6300 ເຄື່ອງສ້າງສັນຍາລ GNSS

Output Frequency

GPS L1: 1575.42MHz

QZSS L1: 1575.42MHz

GLONASS L1 (Ch0): 1602MHz

BeiDou-2 B1: 1561.098MHz

Galileo E1: 1575.42MHz

Signal Codes

GPS L1 C/A: PRN 1 – 63

SBAS L1 C/A: PRN 120 – 138

QZSS L1 C/A: PRN 193 - 202

GLONASS L1 C/A: Channels -7 to +6

BeiDou-2 B1: PRN 1 - 37

Galileo E1 CBOC: PRN 1 - 50

Signal Dynamics

Relative Velocity (Max): ±15,000m/s

Velocity Resolution: 0.01m/s

Signal Level

GPS/SBAS/QZSS L1 C/A: -130dBm nominal

GLONASS L1 C/A: -131dBm nominal

BeiDou-2 B1: -133dBm

Galileo E1: -127dBm nominal

Signal Level Control

Range: +15/-20dB

Resolution: 0.1dB

Linearity: ±0.5dB

Accuracy: ±1.0dB RSS

Signal Quality

Spurious: < -30dBc

Harmonics: < -40dBc

Phase Noise: < 0.1 Rad RMS

Main Clock Stability: < ±1 x 10-9 over one day

Signal Generator Unit

Channel Type 1 GPS L1 C/A and SBAS or QZSS L1 C/A and/or 1 GLONASS L1 C/A and/or BeiDou-2 B1 and/or 1 Galileo E1

Size: 449 x 386 x 89mm (W x D x H) (17.75 x 15.25 x 3.5in)

Weight 6.5kg (14.5 lbs)

Power:

100 – 240 V AC

50 – 60 Hz
