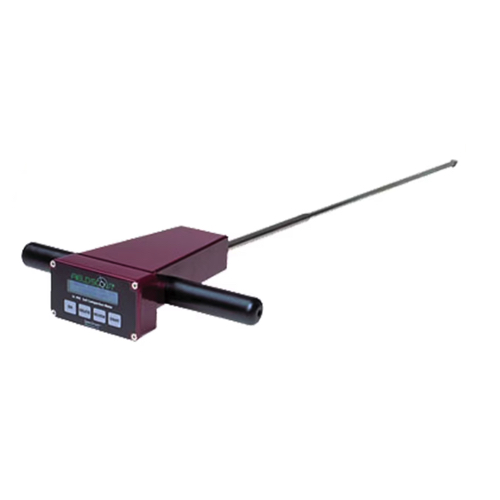

Spectrum Technologies SC900 ເຄື່ອງວັດແທກການບີບອັດດິນ (0 - 18”, 0 - 1000 PSI)

Measurement Units: Cone Index (PSI or kPa)

Resolution: 1” (2.5 cm), 5 PSI (35 kPa)

Accuracy: ±0.5” (±1.25 cm), ±15 PSI (±103 kPa)

Range: 0 - 18” (0 - 45 cm), 0 - 1000 PSI (0 - 7000 kPa)

Maximum Insertion Speed *: 72 in/min (182 cm/min)

Maximum Applied Load *: 210 lbs

Power: 4 AAA alkaline batteries, Approximately 12 month life

Logger Capacity: 772 profiles without GPS, 579 profiles with GPS/DGPS

Display: 16 character, 2 line LCD

Weight: 2.75 lbs. (1.25 kg)

Cone Size Diameters: 1/2”, 3/4” (must have firmware v. 8.1 or greater)

Manual

Catalog

The FieldScout SC900 Soil Compaction Meter measures soil compaction. Compaction compresses soil particles, reducing the available air space, making the movement of water through the roots difficult. This inhibits the growth of plant roots, negatively affecting crops, plants and turf health. Using a soil compaction meter will help guide decisions regarding areas of the field that require tillage, changes to crop rotation and planting of cover crops. Data can be collected with a USB flash drive. For instantaneous data upload and more detailed reporting and mapping abilities, add a FieldScout SpecConnect Cloud Solution Subscription. (GPS interface requires the GPS/DGPS Cable (Item #2950CV5) and the PC serial interface cable supplied by the manufacturer of the GPS receiver)
