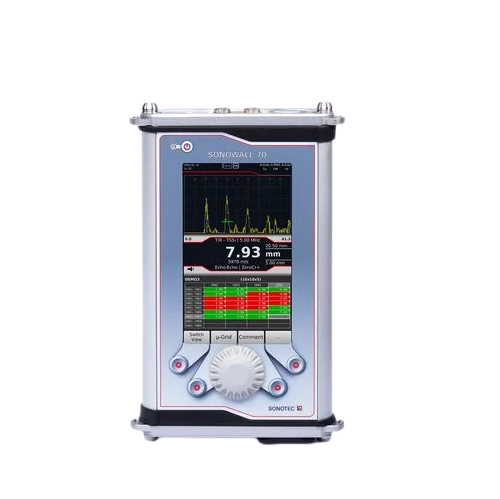

SONOTEC SONOWALL 70 ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic (~10 000 mm)
General Data
Standards: DIN EN 15317, DIN EN 61326, ASTM E 1324, ASTM E 317
Ambient temperature: −20°C ... +60°C
Display: 5" TFT Screen, 800 px x 480 px, 60 Hz
Measurement methods: Single-Echo, Echo-Echo
Size (WxHxD): 195mm x 115mm x 40mm
Weight: 990 g
Protection Class: IP67 (IP40 for device version with video connection)
Internal Memory: 8 GB
External Memory: MicroSD card up to max. 128 GB
Resolution: Up to 0.001 mm
Scan: 100 MSps @ 12 Bit
Measurement Range: Up to 10 000 mm (20 000 mm with screen shift)
Probe Connection: 2 x LEMO 00 (IP67)
Transmitter
Bandwidth: 0.5 MHz ... 15 MHz
Pulse: Negative rectangle (single pulse)
Pulse Width: 20 ns ... 500 ns, in 5-ns-steps
Voltage: 0V ... 400V, in 10-V-steps
Damping: 50 Ohm; 400 Ohm
Receiver
Dynamic Range: Up to 110 dB
Amplifier Bandwidth: 0.2 MHz ... 20 MHz
Digital Filters: 1/2/4/5/7.5/10/15/0.5-20 MHz (EN 12688-1 certified)
Input Impedance: 500 Ohm (in T/R-mode)
