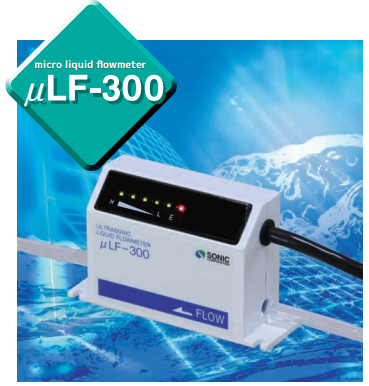

SONIC μLF-300 Ultrasonic ເຄື່ອງວັດແທກການໄຫຼຂອງຂອງແຫຼວ (1/4,1/8inch)
Converter
Model:μLF-308I (1/8 inch) or μLF-304I (1/4 inch)
Measurement method: Ultrasound transit time method
Applicable liquid: Water, aqueous solutions, oils, various chemical liquid
* For liquids other than water, check in advance
Liquid temperature:15 ℃ ～ 60 ℃
* Please confirm in advance if the temperature is over 60 ℃
Atmosphere temperature: 0 ° C to 50 ° C (no condensation)
Measurement range: 0 ml / min-1000 ml / min (μLF-308I)
0 ml / min-4000 ml / min (μLF-304I)
*Accuracy:± 1% RD (1/8 inch: 200 to 1000ml / min, room temperature, water)
± 2ml / min (1/8 inch: 0-199ml / min)
± 1% RD (1/4 inch: 800 ~ 4000ml / min, room temperature, water)
± 8ml / min (1/4 inch: 0-799ml / min)
Reproductivity± 0.2% (liquid temperature ± 0.5 ° C, average value for 30 seconds)
Response: 10 msec
ConstructionIndoor specification (equivalent to IP65)
Power supplyDC 5V ± 10%
Power dissipation: 1.5W or less
Weight:350g (body only)
Data Interface
Serial port4-wire RS-422
ProtocolData bits fixed at 8 bits, even parity fixed, stop bits fixed at 1 bit
baud rate38400 baud
