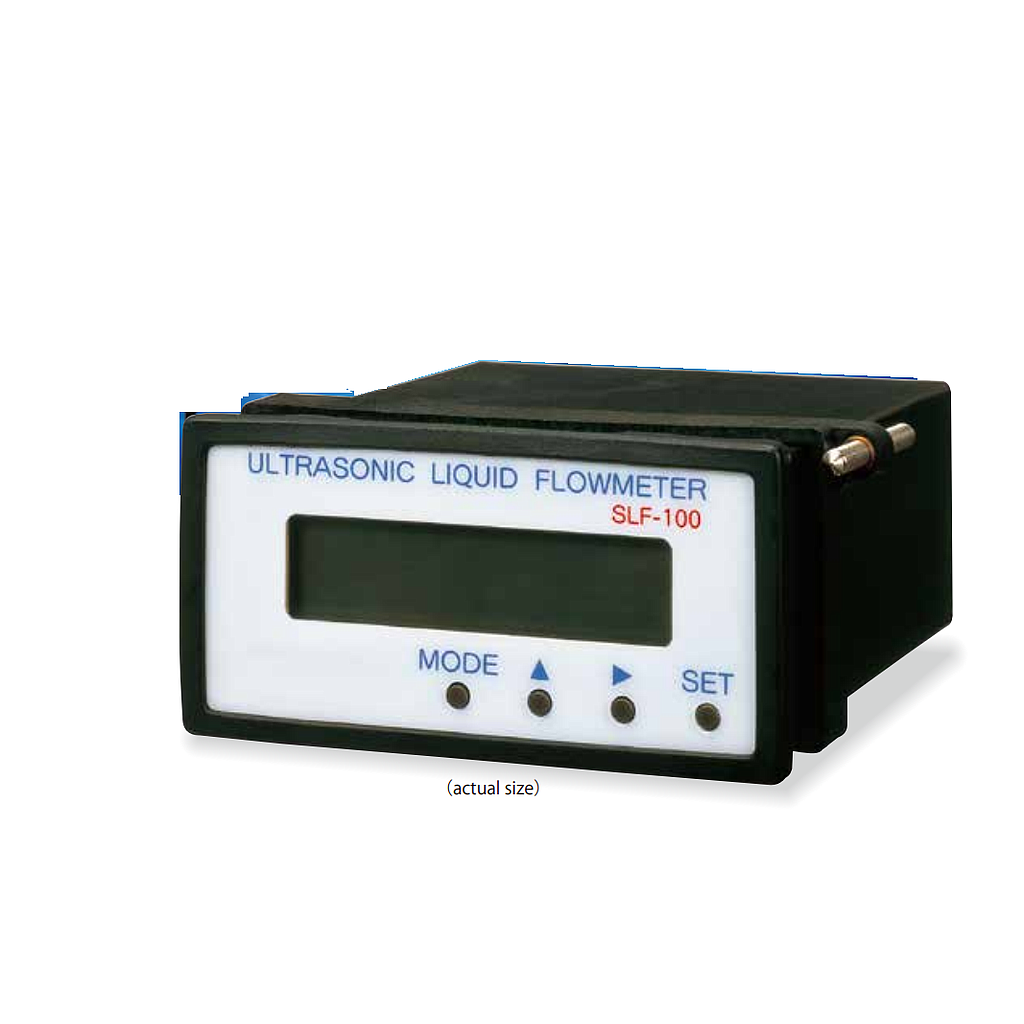

SONIC SLF-100 Ultrasonic ເຄື່ອງວັດແທກການໄຫຼຂອງຂອງແຫຼວ
●Convertor
Measurement method: Ultrasonic transit time method
Environment conditions: Temperature:-10〜50℃
Display function: LCD display(16characters× 2lines) Instantaneous flow rate, or Integrated flow rate
Configuration menu: Measurement range, Measurement unit, etc.
Accuracy: ±2%RD(flow speed 1〜10m/s)
±2cm/s(flow speed less than 1m/s)
Output: Analog(DC 4〜20mA, load resistance: less than 450Ω)
Pulse(Open collector standard 30V, 0.25A)
Alarm(Open collector standard 30V, 0.25A)
Power supply DC12〜30V
Power consumption: less than 2.5VA
Weight: Appox. 330g
●Sensor
Model: SLT-12, SLT-14, STL-15
Structure: Clamp-on type
Material: PVC, PTFE
Applicable liquids:de-ionized water, chemical solution
Applicable pipes: Nominal diameter SLT-12: 3/4 inch(I.D.15.88 O.D.19.05),
1/2inch (I.D.9.53 O.D.12.70),
3/8inch (I.D.6.35 O.D.9.53)
SLT-14: 3/4inch (I.D.15.88 O.D.19.05),
1/2inch (I.D.9.53 O.D.12.70)
SLT-15: 1inch (I.D.22.23 O.D.25.4),
3/4inch (I.D.15.88 O.D.19.05)
Material: PFA
Environment conditions of flow: Temperature: 10〜60℃ (SLT-12),
10〜70℃ (SLT-14),
10〜50℃ (SLT-15)
Cable: 5m(max 10m)
Measurement range: 0.5〜230L/min(1 inch),
0.2〜120 L/min(3/4 inch),
0.1〜40 L/min(1/2 inch),
0.1〜20 L/min(3/8 inch)
Weight: STL-12 Approx. 450g
STL-14 Approx. 350g
STL-15 Approx. 360g
