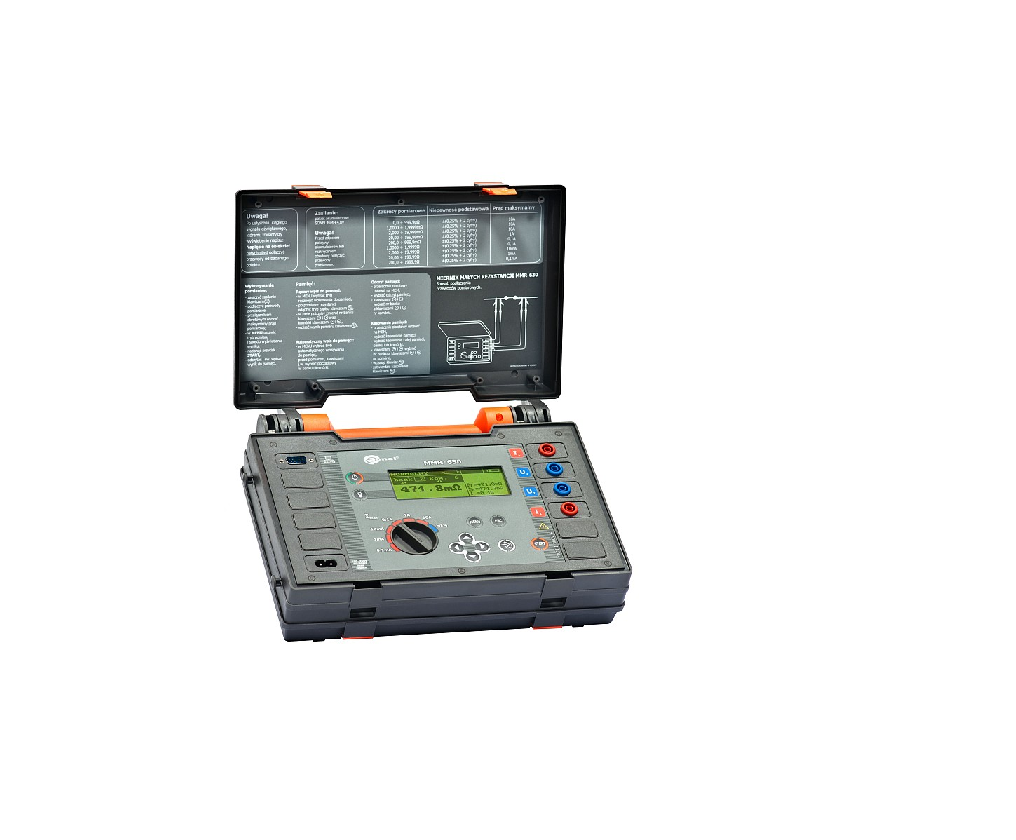

SONEL MMR-630 ໄມໂຄຣມມິເຕີ (0.1μΩ ~1999,9 Ω, 10A)

Name: SONEL MMR-630 ໄມໂຄຣມມິເຕີ (0.1μΩ ~1999,9 Ω, 10A)
Brand: SONEL

ຜູ້ຜະລິດSONEL(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelMMR-630

ຕົ້ນກຳເນີດPoland

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

- Measurement of resistive object type:

+ welded and soldered connections, equipotential bonding, earth wire,

+ terminals and connectors, rail welded joints, cables and wires,

+ measurement 4-pole method.

- Measurement of inductive object type:

+ coils (motors and transformers), low resistance coils.

- Range/ Resolution

+ 0...999,9μΩ /0,1μΩ (Current test 10 A)

+ 1,0000...1,9999 mΩ /0,0001 mΩ (Current test 10 A)

+ 2,000...19,999 mΩ /0,001 mΩ (Current test 10 A)

+ 20,00...199,99 mΩ /0,01 mΩ (Current test 1 A)

+ 200,0...999,9 mΩ /0,1 mΩ (Current test 0,1 A)

+ 1,0000...1,9999 Ω /0,0001 Ω (Current test 0,1 A )

+ 2,000...19,999 Ω /0,001 Ω (Current test 10 mA)

+ 20,00...199,99 Ω /0,01 Ω (Current test 0,1 mA)

+ 200,0...1999,9 Ω /0,1 Ω (Current test 0,1 mA)

-Accuracy : ±(0,25% m.v. + 2 digits)

Includes:

- Test lead 3m (2 pcs.) WAPRZ003DZBB

- „Crocodile” clip K03; black (4 pcs.) WAKROBL30K03

- Kelvin vice K06 (2 psc.) WAKROKELK06

- Carrying case L1 WAFUTL1

- Cable for battery charger WAPRZLAD230

- Ni-MH battery package 4,8V 3Ah WAAKU03

- RS-232 serial transmission cable WAPRZRS232

- Double pin Kelvin probe (2 pcs.) WASONKEL2OGB

- Hanging straps WAPOZSZE1

- User manual

- Calibration certificate issued by calibration laboratory (MMR-630) LSWPLMMR630

Compare model: SKB MIKO-7, SKB MIKO-8, Metrel MI 3250, Sonel MMR 630, Vanguard WRM-10

Data Sheets

User Manuals

Declarations of conformity

Measurement of resistive object type:
- welded and soldered connections, equipotential bonding, earth wire,
- terminals and connectors, rail welded joints, cables and wires,
- measurement 4-pole method.
Measurement of inductive object type:
- coils (motors and transformers), low resistance coils.
Range selection autoranging or manual (measurement of inductive object type).
Selectable measurement mode adjusted to object type:
- for resistive objects - fast mode (3 seconds),
- for inductive objects - long mode with automatic discharge after measurements (or with lower accuracy - shorter mode).
Selectable measurement mode adjusted to application:
- normal mode - after pushing „START” button,
- automatic mode - since test leads are connected to the object meters automatically starts measurement with dual direction current flow and gives average result - what eliminates eventual DC voltage on tested object,
- continuous mode - every 3 seconds for resistive objects or continuous measurement for inductive objects.
Window mode:
- this option enables setting an upper and a lower limit between which the average measurement result is bound to appear. The results outside of this range will be indicated by two long audible signals and the symbols.
MMR-630 is designated not to be effected by interference up to 20 mV and to show noises from 20 to 100 mV (so in edge conditions even 5 times higher than measured drop of potential).
Memory store for up to 990 results and a communications facility for transferring data from the device to a PC.

Electric security:
- type of insulation: double, according to EN 61010 - 1 and IEC 61557
- measurement category: CAT III 300 V acc. to EN 61010 - 1
- protection class acc. to EN 60529: IP54

Other technical data:
- meter’s power supply: battery package SONEL/Ni-MH 4,8 V
- battery charging time: approx. 2,5 hours
- number of measurements with the current of 10 A: 300
- auto-off time: 120 seconds
- immunity to interference: additional error ≤1% for voltage 50 Hz ≤100 mV RMS
- maximum leads resistance for the 10 A current: 0,1 Ω
- maximum inductance of the tested object: 40H
- accuracy of the test current: ±10%
- resistance measurement time:
- with the selected resistive object type with the bidirectional current: 3 seconds
- with the selected inductive object type, dependant on the resistance
and inductance of the object: a few minutes (max. 10)
- dimensions: 295 x 222 x 95 mm
- weight: approx. 1,7 kg

Rated operational conditions:
- operation temperature: 0...+40°C
- storage temperature: -20...+60°C

MMR-620 microohmmeter conforms the following directives
or standards according to CE requirements.

Directive:
Low Voltage Directive (LVD) 73/23/EEC, 93/68/EEC.

Standards:
EN 61010 - 1:2001 Safety requirements for electrical equipment for measurement, control and laboratory use. General requirements .
EN 61010 - 031:2002: Safety requirements for electrical equipment for measurement, control and laboratory use. Safety requirements for hand-held probe assemblies for electrical measurement and test.

Directive:
Electromagnetic compatibility (EMC) 89/336/EEC, 92/31/EEC, 93/68/EEC.

Standards:
EN 61326:1997+A1:1998+A2:2001 Electrical equipment for measurement, control and laboratory use - EMC requirements.

Resistance measurement

MMR-630		Current	Accuracy
Range	Resolution	Current	Accuracy
0...999,9μΩ	0,1μΩ	10 A	±(0,25% m.v. + 2 digits)
1,0000...1,9999 mΩ	0,0001 mΩ
2,000...19,999 mΩ	0,001 mΩ
20,00...199,99 mΩ	0,01 mΩ	1 A
200,0...999,9 mΩ	0,1 mΩ	0,1 A
1,0000...1,9999 Ω	0,0001 Ω	0,1 A
2,000...19,999 Ω	0,001 Ω	10 mA
20,00...199,99 Ω	0,01 Ω	0,1 mA
200,0...1999,9 Ω	0,1 Ω	0,1 mA
