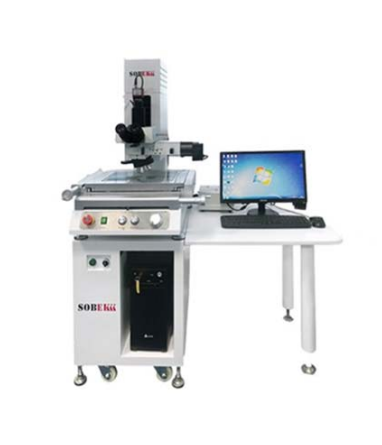

Sobekk MC-400 Metallographic Tool-Make Microscope
Table travel range(XYZ): 400*300*150mm
Dimension: 1000*800*980mm
Resolution: 0.0001mm
Accuracy: （2+L/200) um
Repeatability accuracy: 2um
X.Y move style: Manual
Z move style: Automatic focus(software)+ Manual pulse focus(min move distance 0.1um)
CCD: 1.3M digital color CCD
Software: SBK-MM
Work-table loading: 30KG
Illuminating system: Cold light source transmission lighting, 10W LED reflection lighting
Nosepiece: Five-hole objective rotary table (with DIC slot)
Optical eyepiece tube: Trinocular tube
Eyepiece: WF 10X/22
Adaptor lens: 0.5X
Magnification: Optics:50X-500X, Vision:162X-1570X
Metallographic objective Lens (Bright filed lens)
LWDPLAN 5X: (N.A) 0.14, working distance :10.8mm
LWDPLAN 10X: (N.A) 0.25, working distance:10.0mm
LWDPLAN 20X: (N.A) 0.40, working distance: 4.0 mm
LWDPLAN 50X: (N.A)0.55, working distance: 7.5 mm
Optical system: CSIC infinity correction optical system
Power: 220V±10% ，50Hz , 0.5KW
Environment require: temperature range：22±2℃，humidity range：30%-70%
Optional parts: 100X lens, Dark-field, polarized, DIC(differential interference contrast)
