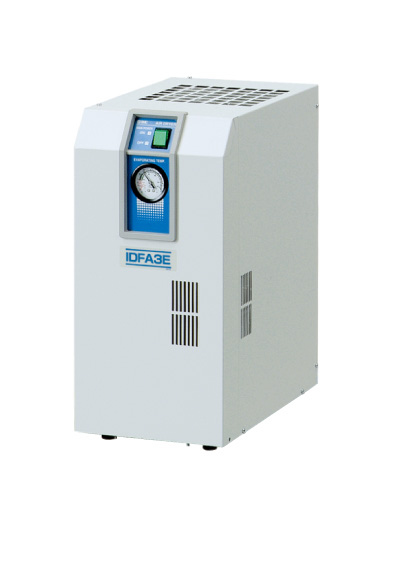

SMC IDFA3E-23 ເຄື່ອງອອກຄວາມຊື່ນອາກາດເຢັນ (0.15 ~ 1.0 MPa)
Fluid: Compressed Air
Inlet air temperature range: 5 to 50 °C
Inlet air pressure: 0.15 to 1.0 MPa (Option K, L, V: 1.6 MPa)
Ambient temperature: 2 to 40 °C (Relative humidity 85% or less)
Rated Condition
Outlet air flow (pressure dew point 3°C): 12 (m³/h ANR)
Outlet air flow (pressure dew point 7°C): 15 (m³/h ANR)
Outlet air flow (pressure dew point 10°C): 17 (m³/h ANR)
Compressed Air Condition (Inlet air pressure 0.7 MPa, inlet temp. 35°C, ambient 25°C)
Outlet air flow (pressure dew point 3°C): 13 (m³/h ANR)
Outlet air flow (pressure dew point 7°C): 16 (m³/h ANR)
Outlet air flow (pressure dew point 10°C): 18 (m³/h ANR)
Electrical Specification
Voltage: 1Φ 230VAC 50Hz
Power supply: 1Φ 230VAC ±10%, 50Hz
Operating current: 1.5 A
Power consumption: 190 W
Others
Earth leakage breaker capacity: 5 A
SCCR: 5 kA
Noise level: 70 dB(A) or less
Condenser: Air cooling
Refrigerant: R1234yf (HFO) GWP=0.501
Refrigerant charge quantity: 150 ± 5 g
Port size: Rc3/8
Accessory: R3/8 (Hexagon nipple)
Drain connection (Outside diameter of tubing): R3/8
Coating color: Panel: White 1, Base: Gray 2
Weight: 18 kg
